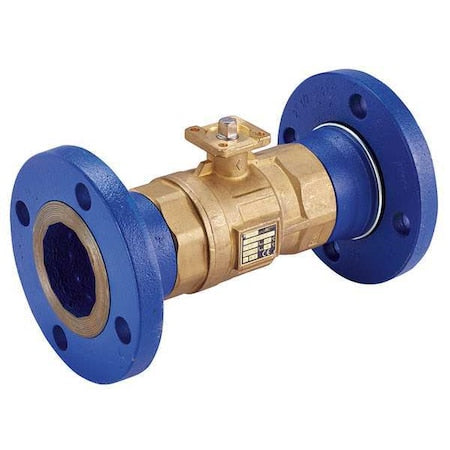

Johnson Controls VG12A5JU Ball Valve Control 4 Inch Flanged 100 psig

Product Description

The Johnson Controls VG12A5JU Ball Valve is engineered for superior regulation of water flow in HVAC systems. This sturdy valve accommodates hot water, chilled water, and up to 50% glycol solutions. Ideal for both factory and field settings, it ensures reliable operation and precise flow control.

• Stainless steel ball and stem for high-temperature durability
• Robust 500:1 range ability for effective load management
• EPDM double O-ring stem seal ensuring no leaks for up to 200,000 cycles

Product Highlights

With a flanged design, the Johnson Controls VG12A5JU allows easy installation and features a flow characterizing disk that enhances flow accuracy across various applications. Available in a two-way configuration with a 100 psi closeoff pressure, it's built to withstand demanding environments.

Technical Specifications

• Valve Type: Ball Valve, Flanged
• Size: 4 inches
• Flow Coefficient (Cv): 117 for Control Port A, 74 for Control Port B
• Material: 300 Stainless Steel for ball and stem
• Max Temperature: 284 Degrees Fahrenheit
• Pressure Rating: 100 psi Closeoff (Two-Way)
