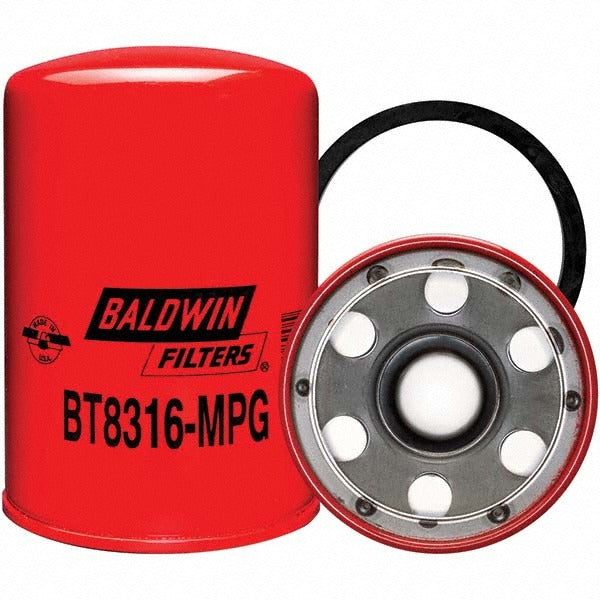

Baldwin Filters BT8316-MPG Spin-on Transmission Filter

Product Description

The BALDWIN FILTERS BT8316-MPG is a spin-on transmission filter designed to remove contaminants from automatic transmission fluid in automotive and light-duty commercial applications. With an outside diameter of 3.69 inches and an overall length of 5.56 inches, this filter installs on a 1-1/2 inch threaded port and includes an O-ring for a reliable seal. It is a direct-replacement spin-on unit, making service straightforward for fleet technicians, transmission specialists, and experienced DIYers performing scheduled transmission maintenance.

This filter is suited for transmission service on passenger vehicles and light commercial equipment where a spin-on style filter is specified. The included O-ring eliminates the need to source a separate seal, reducing parts count at the bench. Compatible cross-reference part numbers listed in the input include units from ACDelco, Caterpillar, Donaldson, Fram, GMC, Hastings, International, Purolator, and Wix, indicating broad application coverage across multiple vehicle and equipment platforms.

Key Features

• Spin-on filter design allows fast, clean removal and installation without disassembling a filter housing
• Outside diameter of 3.69 inches and overall length of 5.56 inches for precise dimensional fitment
• 1-1/2 inch thread size for secure mounting to the transmission port
• Includes O-ring seal - no separate gasket or seal kit required
• Cross-references to multiple OEM and aftermarket part numbers for wide vehicle coverage

Compatibility

Cross-references to the following part numbers: ACDelco TF338, Caterpillar 3I1499, Donaldson P566920, Fram P8604, GMC 29510922, Hastings HF961, International 1663736C1, Purolator H35998, and Wix 57401. Verify fitment against your specific vehicle or equipment specifications before installation.

Installation Notes

Transmission filter service should be performed by a qualified technician following the vehicle or equipment manufacturer's service interval guidelines. Drain or recover transmission fluid before removal to avoid spills, and ensure the transmission is depressurized before loosening the filter. Hand-tighten the spin-on filter until the O-ring contacts the seating surface, then follow the manufacturer's final torque procedure. Refill with the correct transmission fluid type and volume, and verify for leaks after a short operational cycle.
