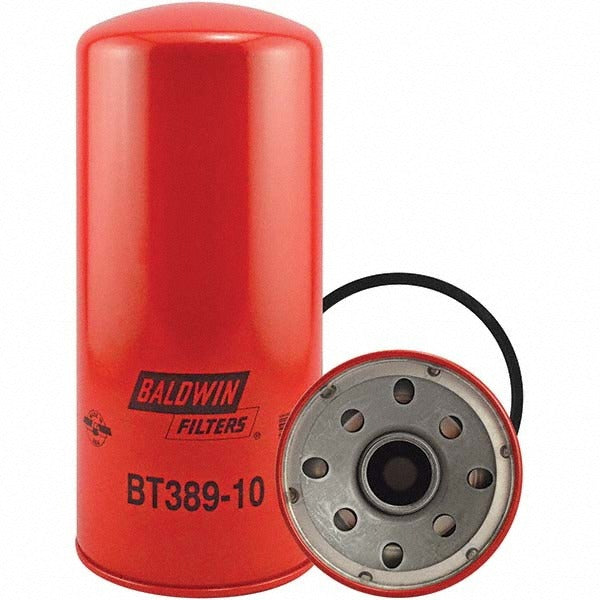

Baldwin Filters BT389-10 Hydraulic Spin-on Filter

Product Description

The BALDWIN FILTERS BT389-10 is a hydraulic spin-on filter designed for heavy-duty automotive and industrial hydraulic systems. With an outside diameter of 5.063 inches and an overall length of 10.75 inches, this spin-on filter installs quickly and provides reliable fluid cleanliness across a wide range of operating conditions. The 1-1/2 inch thread size ensures a secure connection to the filter base. It supports better cold-start performance and superior system protection through advanced filtration technology. Licensed technicians and equipment service professionals working on hydraulic circuits will find this filter a straightforward OEM-style replacement.

The BT389-10 is suited for hydraulic systems found in Bandit, Case, and Koehring equipment, as well as applications using the Special AMBAC base configuration. It serves both mobile and stationary hydraulic circuits where fluid cleanliness and system protection are the primary service objectives. Cross-reference compatibility includes ACDelco PF1097, Case L108576, Caterpillar 3I1663, Donaldson P779600, Fram P7542, GMC 25012488, and Hastings HF904, making it a widely accepted replacement across multiple equipment lines.

Key Features

• Spin-on design for fast, tool-assisted installation and removal
• 5.063 inch outside diameter and 10.75 inch overall length for direct fitment
• 1-1/2 inch thread size for secure base connection
• Improves system fluid cleanliness level for extended component life
• Supports better cold-start performance in low-temperature operating conditions
• Includes G369-B F Gasket; compatible O-gaskets: G286-C, G369-B, G369-V, G372, G447, G483, G704, G710, and G725

Compatibility

Compatible with ACDelco PF1097, Case L108576, Caterpillar 3I1663, Donaldson P779600, Fram P7542, GMC 25012488, and Hastings HF904. Designed for use on Bandit, Case, and Koehring equipment, and applications with a Special AMBAC base.

Installation Notes

Installation should be performed by a qualified hydraulic or diesel equipment technician. Before replacing the filter, relieve system hydraulic pressure completely and allow the fluid to cool to a safe handling temperature. Apply a light film of clean hydraulic fluid to the gasket before threading the filter onto the base by hand until snug, then tighten per standard spin-on filter practice. Inspect the included and replacement gaskets to confirm correct seating and prevent bypass leaks after startup.
