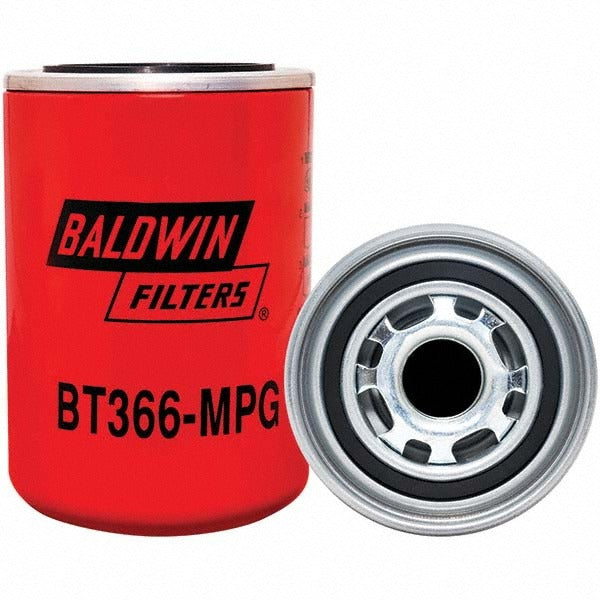

Baldwin Filters BT366-MPG Hydraulic Spin-on Filter

Product Description

The BALDWIN FILTERS BT366-MPG is a Maximum Performance Glass hydraulic spin-on filter designed for automotive and mobile hydraulic systems. This filter uses a glass media construction to deliver higher particle capture efficiency and improved system fluid cleanliness compared to standard cellulose media. At 3.781 inches outside diameter and 5.719 inches overall length, it threads directly onto the filter mount and seals with the included gasket. Hydraulic technicians and fleet mechanics install this unit during routine hydraulic fluid maintenance or when upgrading filtration performance in demanding applications.

The BT366-MPG is suited for automotive and mobile equipment hydraulic circuits where maintaining fluid cleanliness is critical to component life. Its glass media construction supports better cold start performance by maintaining consistent flow characteristics at low temperatures. This filter is appropriate for use in equipment that sees variable operating temperatures or heavy-duty duty cycles where superior hydraulic protection is required.

Key Features

• Maximum Performance Glass media for higher particle capture efficiency and improved system fluid cleanliness
• Spin-on design allows fast, tool-assisted replacement without special equipment
• Better cold start performance due to consistent media flow at low temperatures
• Includes pre-installed gasket for a reliable seal on installation
• 3/4 inch thread size for direct mount to standard hydraulic filter heads
• Superior hydraulic system protection in demanding automotive and mobile equipment applications

Compatibility

Compatible with Donaldson P171602 and Fleetguard HF7983 as a direct replacement.

Installation Notes

Installation is performed by a qualified hydraulic technician or fleet mechanic. Before servicing, relieve system hydraulic pressure completely and allow fluid to cool to a safe handling temperature. Hand-tighten the spin-on filter until the gasket contacts the mounting surface, then snug with a filter wrench per standard hydraulic filter installation practice. Inspect the sealing surface on the filter head for damage or debris before threading on the new unit.
