Baldwin 8225.031.ZW Minneapolis Touchscreen Z-Wave Deadbolt

Product Description

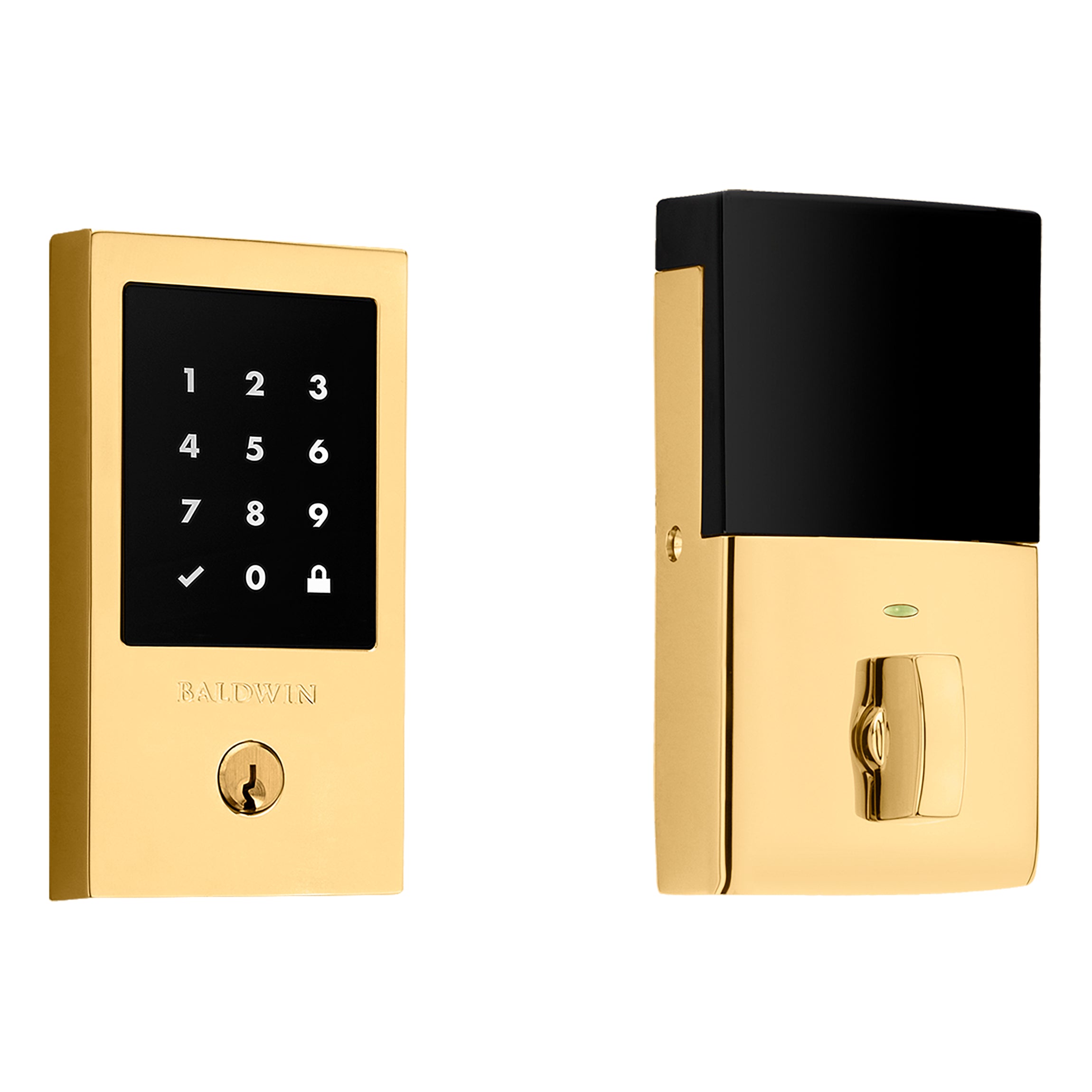

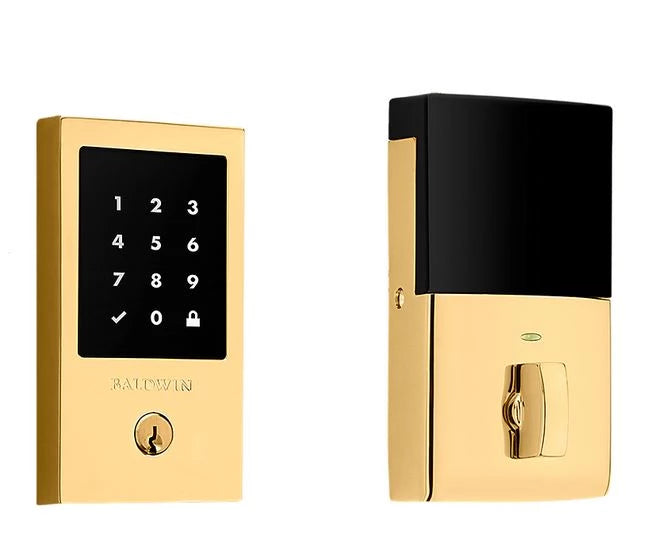

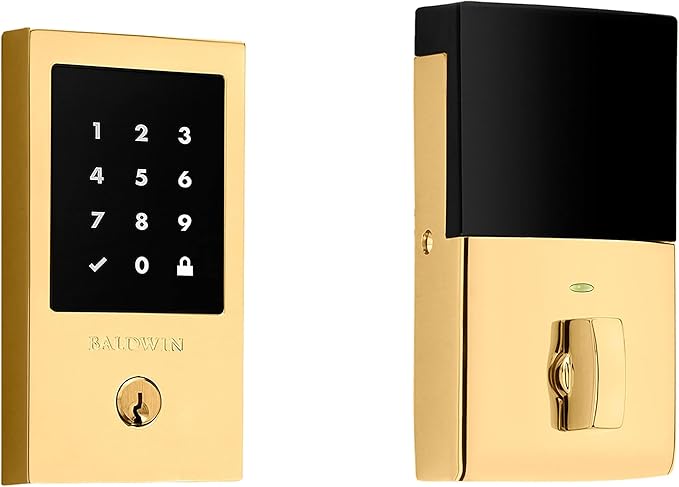

The Baldwin 8225.031.ZW Minneapolis Touchscreen Electronic Deadbolt combines modern design with smart technology. This deadbolt is compatible with Z-Wave systems for easy integration into your smart home. The responsive touchscreen utilizes SecureScreen Technology to enhance security by preventing code detection. It supports up to thirty customizable user codes with lengths ranging from four to eight digits. This lock exceeds ANSI/BHMA Grade 2 security standards and has a UL certified fire rating of twenty minutes.

• Touchscreen with SecureScreen Technology
• Z-Wave Technology for smart home integration
• Up to thirty customizable user codes with four to eight digit length

Product Highlights

This deadbolt is designed for security and convenience. It features a clean contemporary style and can be adjusted to fit different door specifications.

Product Information

Standard Information

• Style: Contemporary
• Lock Type: Key Lock

Technical Specifications

• Backset Size: Adjustable
• Battery Type Required: 4 AA, included
• Assembled Width: 2.781 inches
• Assembled Height: 5.281 inches
• Wireless Security: 128-bit AES communication with Z-Wave 500 chipset
• Door Thickness: 1.75 inches to 2 inches
• Adjustable Backset: 2-3/8 inches or 2-3/4 inches
• Bore Size: Designed to fit 2-1/8 inches cross bore and 1 inch edge bore for latch
• Fire Rating: UL certified 20 minute fire rating
• Material: Brass
• Recommended Uses For Product: Doors
• Control Method: Touch
• Connectivity Protocol: Z-Wave
• Manufacturer: Baldwin
• Part Number: 8225031ZW
• Collection: Estate, Minneapolis
• Function: Single Cylinder Deadbolt
• Door Prep: 2.375 inches Bore, 1 inch Edge Bore
• Cylinder: 5-Pin C-Keyway
• Faceplate: 1 inch Square Corner
• Strike: Square Corner with reinforcing plate
• Latch: 1 inch Throw
• Door Handing: Automatic Handing
• ADA Compliant: No
• Prop 65 Warning: Yes-Lead
• # Of Buttons: 12
• # Of Codes: 30
• ANSI Grade: Grade 2
• Backlit Time: 5 Seconds
• Features Mastercode: Yes
• Interior Locking Type: Turn Piece
• Latch Backset Size: Adjustable
• Strike Type: Square Corner Strike
