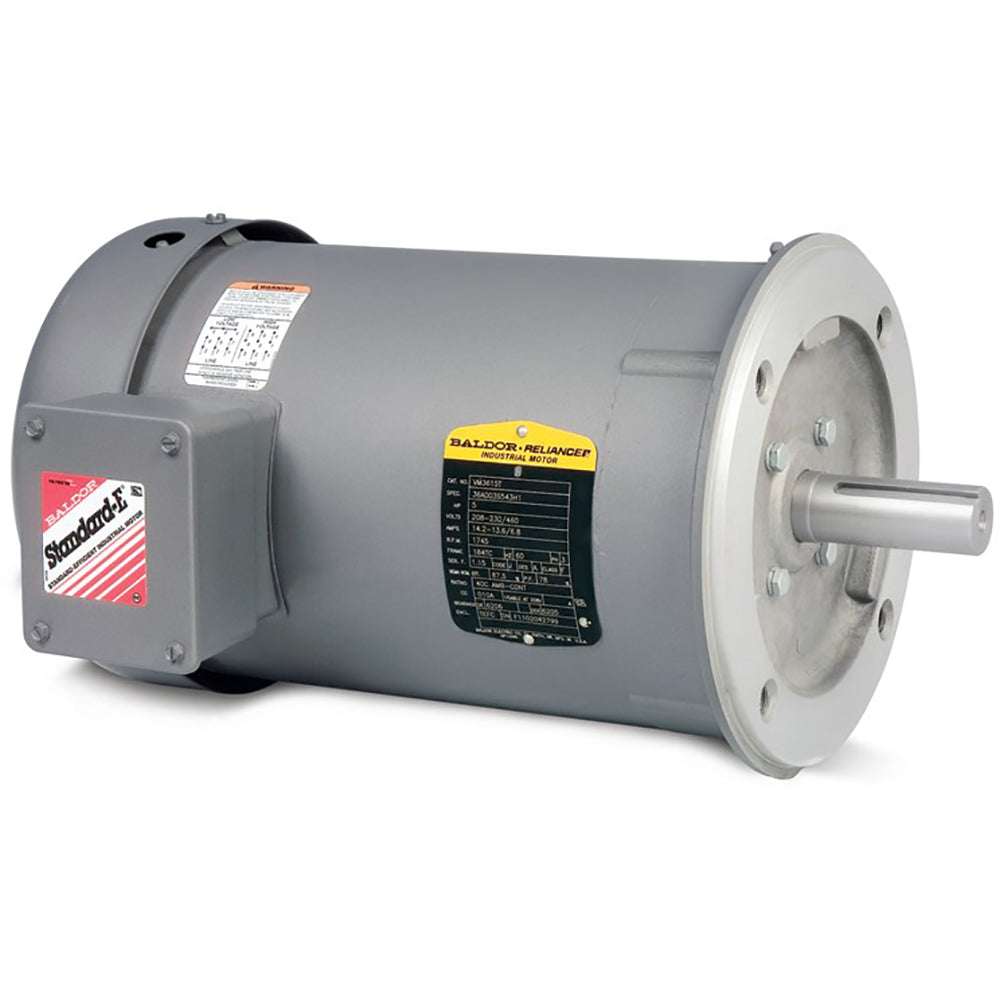

Baldor VM3541 3/4 HP 3450 RPM 56C Frame TEFC C-Face (No Base)

Product Description

Baldor VM3541 is a 3/4 HP three-phase electric motor rated 3450 RPM and 60 Hz, supplied for 208-230/460 V operation. The motor features a 56C frame, totally enclosed fan cooled (TEFC) enclosure, and C-face (no base) mounting. It is configured for continuous duty with a service factor of 1.25, ball bearings, a 0.625 in shaft diameter, and motor lead flying leads with a KO box exit.

• Electrical: 3/4 HP, 3-phase, 60 Hz, 208-230/460 V; full load current 3.1 A @ 208 V, 2.6 A @ 230 V, 1.3 A @ 460 V
• Mechanical: 56C frame, C-face (no base) mounting, 0.625 in shaft diameter, overall length 11.35 in, ball bearings (6203)
• Construction and ratings: TEFC enclosure, insulation class B, service factor 1.25, continuous duty, IP44 listed

Product Highlights

General purpose three-phase TEFC C-face motor for pumps, fans, conveyors, compressors and machine tools; 3450 RPM, 56C frame, dual voltage 208-230/460 V.

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: VM3541

Technical Specifications

• Brand: Baldor
• MPN: VM3541
• Horsepower: 3/4 HP (0.75 HP)
• Rated Speed (RPM): 3450 RPM
• Synchronous Speed (RPM): 3600 RPM @ 60 Hz
• Phase: 3-phase
• Frequency: 60 Hz
• Frame: 56C
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• IP Rating: IP44
• Voltage: 208-230/460 V
• Nameplate Volts: 230/460
• Full Load Current: 3.1 A @ 208 V; 2.6 A @ 230 V; 1.3 A @ 460 V
• Mounting Type: C-face (no base) / F1
• Service Factor: 1.25
• Insulation Class: B
• Bearings: Ball bearings (6203 front and rear)
• Shaft Diameter: 0.625 in (5/8 in)
• Overall Length: 11.35 in
• Duty Rating: Continuous (CONT)
• Number of Poles: 2
• Efficiency @ 100% Load: 74.0 % (reported; value is lower than typical modern premium-efficiency motors — see notes)
• Power Factor: 0.73 (73%)
• Motor Lead Termination: Flying leads
• Motor Lead Exit: KO Box
• NEMA Design Code: B
• Standards / Certifications: C UR US; UR; CSA; RoHS compliant
• Application: General purpose (pumps, fans, conveyors, compressors, machine tools)
