Baldor VEM31120 General purpose motor 1.5 HP 56C 3518M F1

Product Description

Baldor VEM31120 is a 1.5 HP three-phase electric motor rated for 230/460 V and 60 Hz, providing approximately 3490 RPM in a NEMA 56C frame with an open drip-proof enclosure and C-face footless (F1) mounting. The motor is designed for general purpose industrial use and features premium efficiency and robust mechanical construction for equipment such as pumps, fans, conveyors, and machine tools.

• 1.5 HP, three-phase motor rated 230/460 V, 60 Hz, approx. 3490 RPM
• NEMA 56C frame, open drip-proof (ODP) enclosure, C-face footless (F1) mounting
• Premium efficiency design with F insulation class and service factor 1.15

Product Highlights

General-purpose 3-phase motor, 1.5 HP, 56C frame, ODP enclosure, C-face footless mounting, 230/460 V, ~3490 RPM

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: VEM31120
• Country of Origin: US

Technical Specifications

• Brand: Baldor
• Manufacturer: ABB - Baldor
• Manufacturer Part Number: VEM31120
• UPC: 781568763636
• GTIN / EAN: 0781568763636
• Horsepower: 1.5 HP
• Output Power (kW): 1.1 kW
• Input Voltage: 230/460 V
• Phase: 3
• Frequency: 60 Hz
• Rated Speed: 3490 RPM
• Synchronous Speed: 3600 RPM
• Frame: 56C
• Motor Type: 3518M
• Enclosure: Open drip-proof (ODP)
• Mounting Type: C-face footless (F1)
• Insulation Class: F
• Service Factor: 1.15
• Efficiency @ 100% Load: 84%
• Power Factor: 83%
• Duty Rating: Continuous
• Number of Poles: 2
• Full Load Current: 4.2 A @ 208 V, 4.0 A @ 230 V, 2.0 A @ 460 V
• Shaft Diameter: 0.625 in
• Shaft Extension Location: Pulley end
• Bearing (DE): 6205
• Bearing (ODE): 6203
• Bearing Grease Type: Polyrex EM
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Lead Exit: KO box
• Motor Lead Termination: Flying leads

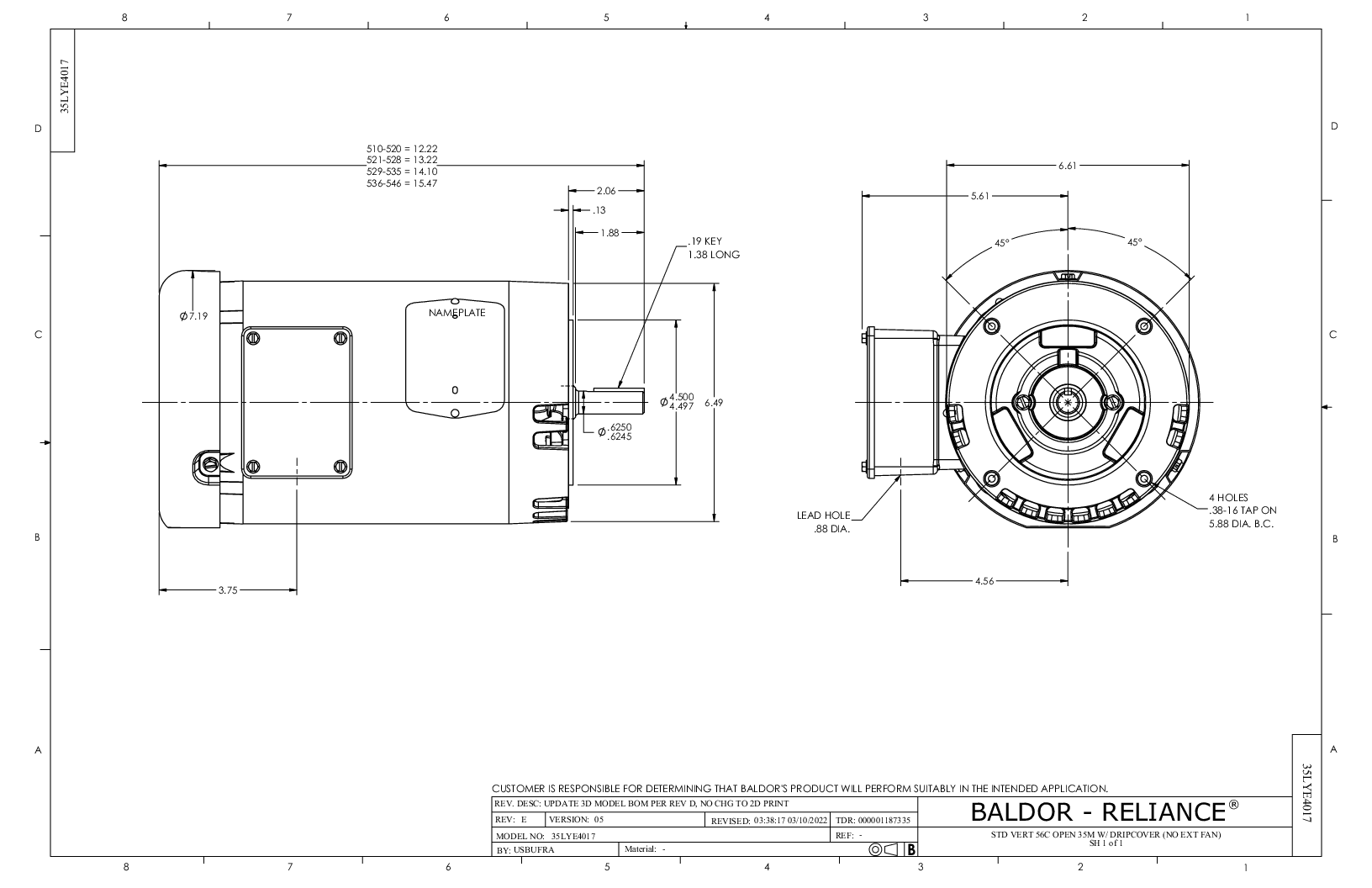

• Overall Length: 12.22 in
• Weight: 34 lb
• Ambient Temperature Rating: 40 C
• Inverter Rated: Inverter ready
• Mounting Arrangement: F1
• Nameplate Specification: 35E4017M761G1
• Agency Approvals: CSA, UR
• NEMA Design: B
• KVA Code: L
