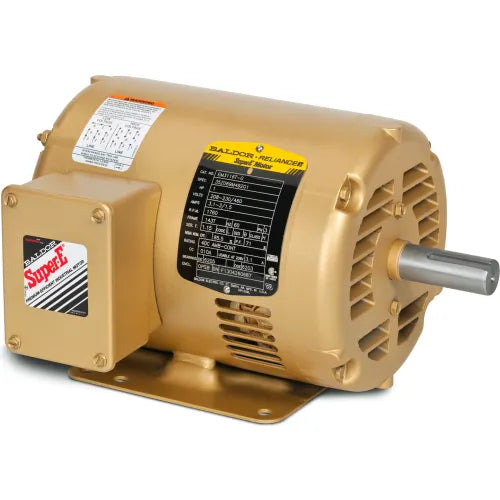

Baldor VEM31111 0.75 Hp 3-Phase Motor 56C Frame C-Face

Product Description

Baldor VEM31111 is a general-purpose 3-phase electric motor rated at 0.75 Hp and 3450 RPM for 60 Hz operation. The motor is a 2-pole, 56C frame open-enclosure design with F1 foot mounting, intended for continuous duty at 40 °C ambient and dual-voltage 230/460 V supply. It features a service factor of 1.25, Class B insulation, 76.8% full-load efficiency, ball bearings (6203), and flying leads with KO box exit.

• 0.75 Hp, 3450 RPM, 3-phase; dual voltage 230/460 V; service factor 1.25
• 56C steel frame open enclosure with F1 foot mounting, pulley-end shaft 0.625 in
• Flying leads (9 @ 18 AWG) with KO box exit, ball bearings (6203), continuous duty

Product Highlights

General-purpose 3-phase motor, 56C frame, 0.75 Hp, 230/460 V, 3450 RPM, continuous duty

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: VEM31111
• Country of Origin: USA

Technical Specifications

• Brand: Baldor
• Manufacturer Part Number: VEM31111
• Product Type: General purpose 3-phase motor
• Motor Type: 3416M
• Horsepower: 0.75 HP
• Output kW: 0.55
• Rated Speed: 3450 RPM
• Synchronous Speed: 3600 RPM
• Poles: 2
• Phase: 3
• Frequency: 60 Hz
• Input Voltage: 230 / 460 V
• Full Load Efficiency: 76.8%
• Power Factor: 80%
• Service Factor: 1.25
• Frame: 56C
• Frame Material: Steel
• Enclosure: Open (ODP)
• Degree of Protection: IP22
• Mounting Type: F1 (foot mounting)
• Shaft Diameter: 0.625 in
• Shaft Extension Location: Pulley end
• Bearing (DE/ODE): 6203 / 6203
• Pulley Face Code: C-Face
• Pulley End Bearing Type: Ball
• Motor Lead Termination: Flying leads (9 @ 18 AWG)
• Motor Lead Exit: KO Box
• Insulation Class: B
• Design Code: B
• KVA Code: L
• Duty Rating: CONT (continuous)
• Ambient Temperature Rating: 40 °C
• Current @ 230 V: 2.400 A
• Current @ 460 V: 1.200 A
• Starting Method: Direct on line (DOL)
• Efficiency @ 100% Load: 76.8%
• Power Factor at Full Load: 80
• RoHS Status: RoHS compliant
• Agency Approvals: cURus, CE, VDE (as listed)
• Model/Spec Number: 34F012W719G1
• Manufacturer: ABB/Baldor
• Application: General purpose (pumps, fans, compressors, blowers, conveyors, machine tools)
• Weight: 25 lb
• Bearing Grease Type: Polyrex EM
• Number of Leads: 9 @ 18 AWG
• Mounting Arrangement: F1
• Frame Size NEMA: 56C
• Enclosure IEC: IP22
