Baldor VEM31108 .5hp 1725rpm 3ph 60hz 56c 3424m open F1 motor

Product Description

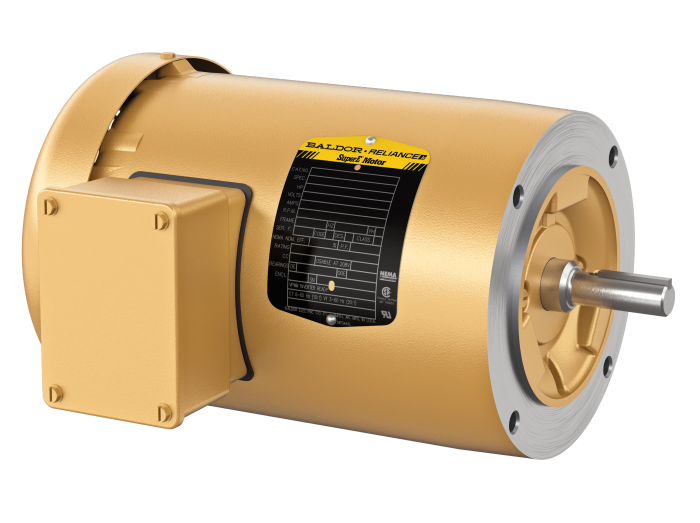

The BALDOR VEM31108 is a 0.5 HP, 1800 RPM, 3-phase motor designed for general purpose applications. This Baldor-Reliance motor features a 56C frame, 230/460V operation, and an Open Drip-Proof (ODP) enclosure. It offers C-Face footless mounting and premium efficiency, suitable for various industrial uses.

• 0.5 Horsepower, 1800 RPM, 3-phase, 60 Hz operation.
• 56C Frame with Open Drip-Proof (ODP) enclosure and C-Face footless mounting.
• Operates on 230/460V, featuring premium efficiency for general purpose applications.

Product Highlights

This Baldor VEM31108 motor is a premium efficient, open drip-proof unit with a 56C frame and C-face footless mounting, ideal for diverse industrial applications.

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: VEM31108

Technical Specifications

• Manufacturer: ABB - BALDOR
• Model Number: VEM31108
• Horsepower: 0.5 HP
• RPM: 1800 RPM
• Frame: 56C
• Phase: 3 PH
• Voltage: 230/460V
• Frequency: 60 HZ
• Enclosure: ODp
• Mounting: C-Face footless
• Efficiency: Premium Efficiency
• Motor Type: 3424M
• Frame Material: Steel
• Hazardous Area Class and Group: None
• Hazardous Area Division: Not Applicable
• Agency Approvals: CURUSEEV
• Ambient Temperature: 40 °C
• Auxiliary Box: No Auxiliary Box
• Auxiliary Box Lead Termination: None
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 0.800 A @ 460.0 V, 1.600 A @ 230.0 V, 1.700 A @ 208.0 V
• Design Code: B
• Drip Cover: Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 78.2 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: No Feedback
• High Voltage Full Load Amps: 0.8 A
• Front Face Code: Drip Cover Mounting
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: J
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Mounting Arrangement: F1
• Number of Poles: 4
• Power Factor: 78
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.25
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on Line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Nameplate Specification: 34F012X110G1
• Nameplate Amperage: 1.7-1.6/0.8
• Nameplate Rating: 40C AMB-CONT
• Nameplate CC DE: 6203
• Nameplate ODE: 6203
• Nameplate SN: SFA 2.1-2/1
• Temperature Rise @ Rated Load: 25° C
• Temperature Rise @ S.F. Load: 31° C
• Start Configuration: DOL
• Break-Down Torque: 5.24 LB-FT
• Pull-Up Torque: 3.8 LB-FT
• Locked-Rotor Torque: 5.12 LB-FT
• Starting Current (Performance): 6.16 A
• Output KW: 0.37
• Enclosure IEC: IP22
• HS Code: 8501.51.4040
