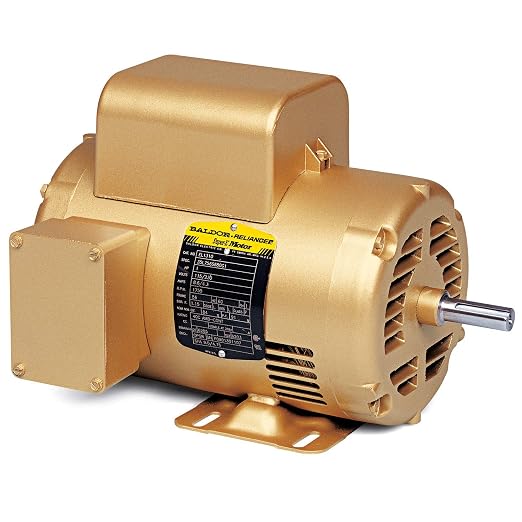

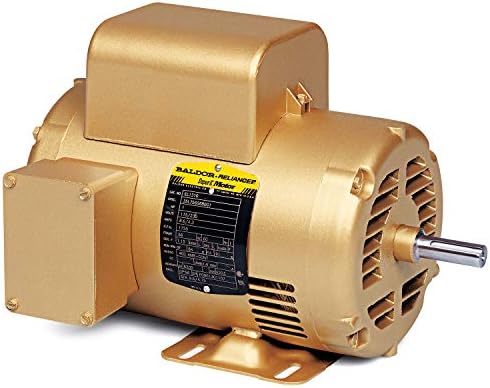

Baldor VEL11301 .33hp, 1740rpm, 1ph, 60hz, 56c, 3418lc, open, F

Product Description

The Baldor VEL11301 is a single-phase, open-frame general purpose motor designed for continuous duty. It features 0.33 horsepower, 1740 RPM, and operates at 60 Hz with a 56C frame. This motor utilizes a Cap Start, Cap Run design, has a 1.35 service factor, and is RoHS compliant. It adheres to NEMA motor standards, supports direct on line starting, and is rated for 115/230V operation.

• 0.33 HP, 1740 RPM, 1 Phase operation
• Open enclosure with 56C frame and continuous duty rating
• Cap Start, Cap Run motor type with reversible shaft rotation

Product Highlights

Designed for continuous duty with a Cap Start, Cap Run design, featuring a 1.35 service factor and RoHS compliance.

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: VEL11301
• Country of Origin: United States

Technical Specifications

• Product Type: MECHANICAL_COMPONENTS
• MPN: VEL11301
• Horsepower: 0.33
• RPM: 1740
• Phase: 1
• Frequency: 60HZ
• Frame Size: 56C
• Enclosure Type: OPEN
• Class: F
• Motor Type: 3418LC
• Frame Material: Steel
• Motor Design: Cap Start, Cap Run
• Synchronous Speed: 1800 RPM @ 60 HZ
• Input Voltage: 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Hazardous Area Class: None
• Hazardous Area Division: Not Applicable
• Agency Approvals: CURUSEEV
• Operating Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Full Load Current: 1.700 A @ 230.0 V, 2.500 A @ 208.0 V, 3.400 A @ 115.0 V
• Design Code: N
• Drip Cover: Drip Cover
• Duty Rating: CONT
• Efficiency: 72.4 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• Front Face Code: Drip Cover Mounting
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Inverter Code: Not Inverter
• KVA Code: K
• Lifting Lugs: No Lifting Lugs
• Locked Bearing: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 6 @ 18 AWG
• Mounting Arrangement: F1
• Number of Poles: 4
• Power Factor: 85
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Compliance: ROHS COMPLIANT
• Service Factor: 1.35
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Bearing Thermal Device: None
• Winding Thermal Device: None
• Vibration Sensor: No Vibration Sensor
• Nameplate Rating: 40C AMB-CONT
• Nameplate CC DE: 6203
• Nameplate ODE: 6203
• Nameplate SN: SFA 4.4/2.2
• Output KW: 0.25
• Mounting Type: C-Face No Base
• Enclosure IEC Rating: IP22
• Application: Material Handling, Machine Tool
