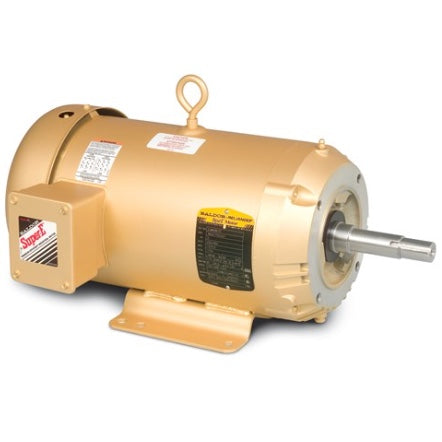

Baldor VEJMM3709T electric motor 7.5hp 3520rpm 3ph 60hz 213jm tefc

Product Description

The BALDOR VEJMM3709T electric motor is a 7.5 horsepower, 3-phase unit operating at 3520 RPM and 60 Hz. Featuring a 213JM steel frame and a Totally Enclosed Fan Cooled (TEFC) enclosure, this motor is designed for continuous duty in various industrial applications. It is Inverter Ready and RoHS Compliant, supporting multiple voltages including 208V, 230V, and 460V, making it suitable for diverse power systems.

• 7.5 HP, 3-phase motor with 3520 RPM and 60 Hz frequency.
• Durable 213JM steel frame and Totally Enclosed Fan Cooled (TEFC) enclosure.
• Inverter Ready and RoHS Compliant, supporting 208V, 230V, and 460V operation.

Product Highlights

Inverter Ready and RoHS Compliant for continuous industrial operation.

Product Information

Standard Information

• Brand: BALDOR
• Manufacturer Part Number: VEJMM3709T
• Country of Origin: United States

Technical Specifications

• Brand: Baldor
• Manufacturer: ABB - BALDOR
• MPN: VEJMM3709T
• Horsepower: 7.5 HP
• RPM: 3520 RPM
• Phase: 3 Phase
• Frequency: 60 Hz
• Frame: 213JM
• Model: 3728M
• Enclosure: TEFC
• Product Type: Closed Couple Pump Continuous Duty Type 3728M
• Frame Material: Steel
• Synchronous Speed: 3600 RPM @ 60 HZ
• Voltage: 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
• Current: 18.000 A @ 230.0 V, 19.000 A @ 208.0 V, 9.000 A @ 460.0 V
• Agency Approvals: NEMA_PREMIUM, CURUSEEV, CSA, CSA EEV, UR
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: No Mounting
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Cycle: CONT
• Efficiency @ 100% Load: 89.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Current: 9.0 A
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: J
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 14 AWG
• Mounting Arrangement: F1
• Number of Poles: 2
• Power Factor: 84
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Tapped & Key
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 0.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: Shaft Slinger
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: Closed Coupled
• Output KW: 5.5
• Mounting Type: C Face No Base
• Enclosure IEC: IP44
• Conduit Box Material: Steel
• Alternate Part Number: 37G116L869G1
• Torque Rating: 10.9 ft-lb
• Application Type: General Purpose AC Motors, Sewage & Wastewater Pump Motors
