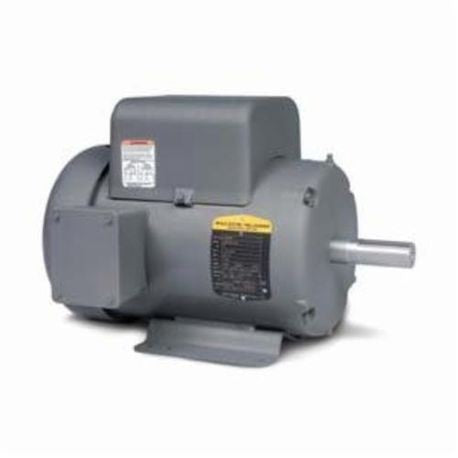

Baldor-Reliance L3508 General Purpose Motor - 3/4 hp - 115/230 VAC

Product Description

The Baldor-Reliance L3508 is a general-purpose motor with a power rating of three-fourths horsepower and a speed of one thousand two hundred rpm. This motor operates on a voltage of one hundred fifteen or two hundred thirty volts and is designed with a Totally Enclosed Fan Cooled (TEFC) enclosure. It is suitable for various applications such as compressors, pumps, fans, farm equipment, conveyors, material handling equipment, and machine tools.

• Continuous duty cycle
• Heavy gauge steel frame
• Ball bearing design for smooth operation

Product Highlights

This motor features a durable construction and is built for reliable performance in industrial and commercial environments.

Product Information

Standard Information

• Brand: Baldor-Reliance
• Manufacturer: Baldor Electric

Technical Specifications

• Motor Phase: 1 ph
• Horsepower: 3/4 hp
• Base RPM: 1145 rpm
• Enclosure Type: TEFC
• Frame Size: 56
• Voltage Rating: 115/230 V
• Amps @ Voltage: 4.0 A @ 208 V; 7.8 A @ 115 V; 3.9 A @ 230 V
• Dimensions: 12.93 in L x 9.88 in W x 9.06 in H
• Weight: [to be updated]
