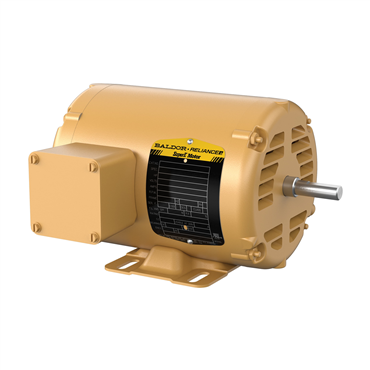

Baldor-Reliance EM30003 General Purpose Motor - 1/4 HP 1725 RPM 3 PH 60 HZ 48 ODP

Product Description

The Baldor-Reliance EM30003 is a general-purpose electric motor designed for various industrial applications. This motor operates at one-quarter horsepower and features a speed of one thousand seven hundred twenty-five RPM. It's suitable for three-phase power systems and offers an open drip-proof enclosure for protection against moisture.

• Power: 1/4 HP
• Speed: 1725 RPM
• Phase: Three Phase

Product Highlights

The EM30003 motor is ideal for applications requiring continuous duty cycles. Its rigid base mounting and durable steel construction ensure reliable operation in many environments.

Product Information

Standard Information

• MPN: EM30003
• Brand: Baldor-Reliance

Technical Specifications

• Service Factor: 1.35
• Efficiency: 69.5%
• Mount Type: F-1
• Voltage: 460 V
• NEMA Design: B
• Frequency: 60 Hz
• Synchronous Speed: 1800 RPM
• Power Factor: 62
• Phase: Three Phase
• Standard Compliance: CURUSEEV, NEMA
• Frame Material: Steel
• Frame Size: 48
• Full Load Current: 1 A/0.5 A
• Base Type: Rigid
• Shaft Rotation: Reversible
• Ambient Temperature: 104 °F
• Duty Cycle: Continuous
• Insulation Class: F
• Enclosure Type: ODP
• Overall Length: 9.62 inches
• Poles: 4
• Shaft Grounding: No
• Shaft Diameter: 0.5 inches
• Weight: 21.0 LB
• UPC: 781568732601
