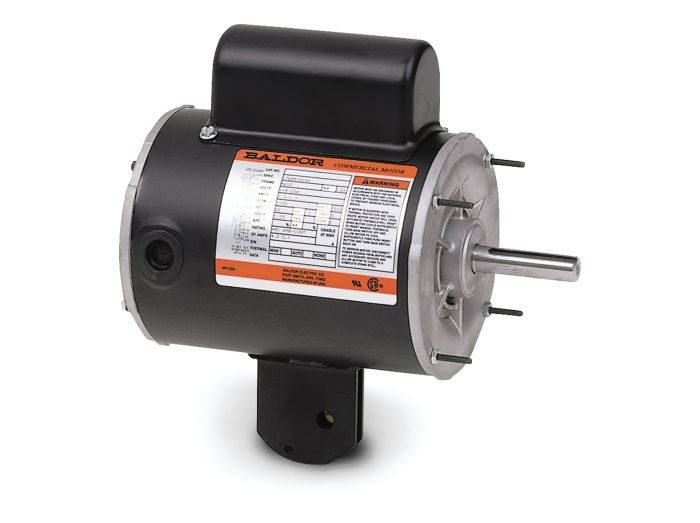

Baldor Motor YPC244A Direct Drive Fan Motor 33/100 HP

Product Description

The BALDOR MOTOR YPC244A is a direct drive fan motor designed for light industrial duty. Suitable for continuous air-over applications with moderate starting loads. Operates at 115 Volts, 3.4 Amps, and 1625 RPM at 60 Hz. Features a TEAO enclosure and a 48YZ frame. The motor is single phase (PSC).

• 40° C ambient temperature rating
• Automatic thermal overloads
• Reversible rotation

Product Highlights

This direct drive fan motor is designed for continuous use in air-over applications. It features automatic thermal overloads and reversible rotation.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: YPC244A

Technical Specifications

• Brand: Baldor
• Mfg. Number: YPC244A
• Product Type: Direct Drive Fan Motor
• Horsepower: 0.33 HP
• Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Synchronous Speed: 1800 RPM
• Speed: 1625 RPM
• Speed Code: Single Speed
• High Voltage Full Load Amps: 3.4 Amps
• Enclosure: TEAO
• Frame Size: 48YZ
• Motor Type: 3411C
• Motor Standards: NEMA
• Number of Poles: 4
• Pulley Face Code: Standard
• Frame Material: Steel
• Motor Lead Quantity/Wire Size: 5 @ 18 AWG
• Overall Length: 10.68 in
• Service Factor: 1
• Efficiency @ 100% Load: 66.00%
• Duty Rating: CONT
• Inverter Code: Not inverter
• Auxillary Box: No Auxillary Box
• Base Indicator: Yoke Pedestal
• Bearing Grease Type: POLYREX EM (-20F +300F)
• Current: 3.4 A
• Design Code: -
• Drip Cover: No Drip Cover
• Heater Indicator: No heater
• KVA Code: B
• Motor Lead Exit: Terminal Panel or Lead Hole
• Motor Lead Termination: None
• Rodent Screen: No
• Shaft Diameter: 0.500 in
• Insulation Class: B
• Power Factor: 96
• Pulley End Bearing Type: Ball Bearing
• Shaft Extension Location: Pulley End
• Shaft Rotation: Reversible: Connected Standard
• Shaft Slinger Indicator: Shaft Slinger
• Starting Method: Direct on line
• Vibration Sensor Indicator: No Vibration Sensor
• Thermal Device - Bearing: No
• Thermal Device - Winding: No
• Ambient Temperature: 40 °C
• Agency Approvals: CSA UR
• AC Voltage: 110-120 VAC
• Nominal Voltage: 120 VAC
• Mounting: Cradle
• Composition: Steel
