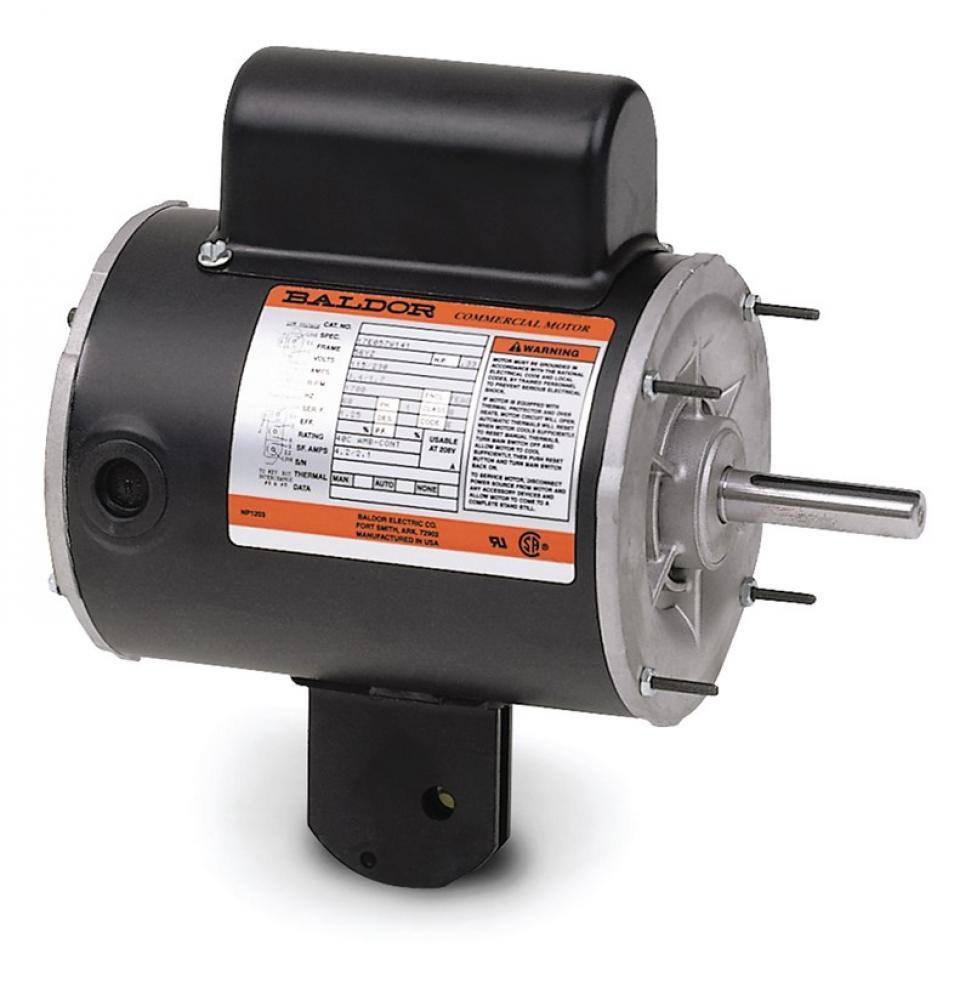

Baldor Motor YPC144A .25HP, 1625RPM, 1PH, 60HZ, 48YZ, 3408C, TEAO, F

Product Description

The BALDOR MOTOR YPC144A is a .25HP, 1625RPM, 1PH, 60HZ motor with a 48YZ frame, 3408C motor type and TEAO enclosure. Designed for continuous use in air-over applications with moderate starting loads. It features a steel frame, automatic thermal overload protection, and reversible rotation. Suitable for direct drive fan applications.

• Features a 48YZ frame and TEAO enclosure.
• Operates at 115V and 2.5A with a single-phase, 60Hz power supply.
• Designed for air-over applications with moderate starting loads.

Product Highlights

This Baldor-Reliance direct drive fan motor is designed for continuous operation and features a steel frame, automatic thermal overload, and reversible rotation.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: YPC144A

Technical Specifications

• Catalog Number: YPC144A
• Enclosure: TEAO
• Frame: 48YZ
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Oil Capacitor Start and Run
• Output @ Frequency: .250 HP @ 60 HZ
• Phase: 1
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 115.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Yoke Pedestal
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 2.500 A @ 115.0 V
• Design Code: N
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 67.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• Front Face Code: Terminal Panel
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: -
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Terminal Panel Or Lead Hole
• Motor Lead Termination: None
• Motor Lead Quantity/Wire Size: 5 @ 18 AWG
• Motor Type: 3408C
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 10.68 IN
• Power Factor: 98
• Product Family: General Purpose
• Pulley End Bearing Type: Ball Bearing
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS NON-COMPLIANT
• Service Factor: 1.00
• Shaft Diameter: 0.500 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible: Connected Standard
• Shaft Slinger Indicator: Shaft Slinger
• Speed: 1625 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: Automatic Thermal Overload
• Winding Thermal 1 Location: WG
• Winding Thermal 2: None
• Drive End Flange: Standard
• Motor RPM 60 Hertz: 1625 rpm
• Mounting Location: Yoke/Pedestal
• Manufacturers Part Number: YPC144A
• RPM: 1625 rpm
• Horsepower: 1/4 HP
• Hertz: 60 Hz
• Enclosure Type: Totally Enclosed
• Voltage: 115 V
• Poles: 4
• RPM Range: 1501-1700 rpm
• Mfg. Number: YPC144A
• Product Type: Direct Drive Fan Motor
• Synchronous Speed: 1800 RPM
• Current: 2.5 A
• Brand: Baldor
