Baldor Motor XL050242A .25Hp, 1725Rpm, 1Ph, 60Hz, 56, 3414L, Xpfc, F1

Product Description

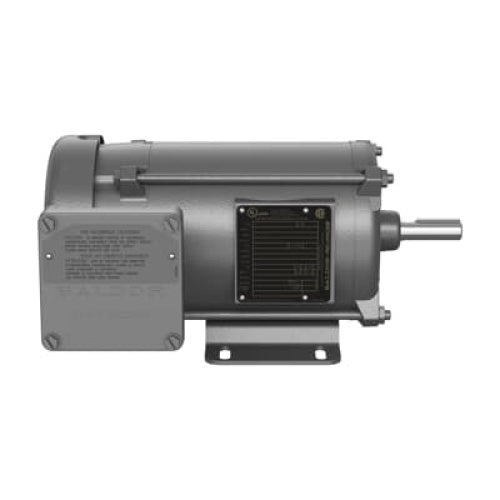

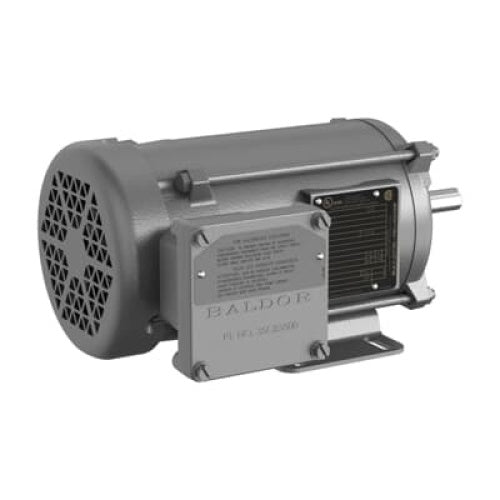

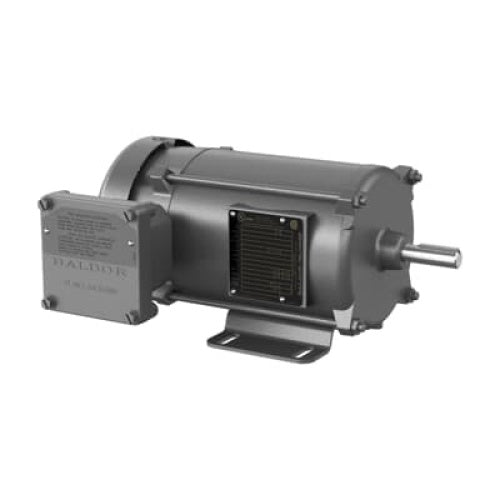

The BALDOR MOTOR XL050242A is a .25 horsepower motor with 1725 RPM, 1 Phase, and 60Hz frequency. It features a 56 Frame, 3414L Motor Type, XPFC Enclosure, and F1 Mounting Arrangement. Designed for use in hazardous locations, this motor is suitable for applications where combustible gases, vapors, or dust may be present.

• Heavy duty steel frame
• 5/8" Keyed output shaft
• Threaded lead inlet.

Product Highlights

Ideal for pumps, fans, and conveyors in Division 1 hazardous areas, ensuring reliable performance in challenging conditions.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: XL050242A
• Country of Origin: USA

Technical Specifications

• Catalog Number: XL050242A
• Enclosure: XPFC
• Frame: 56
• Frame Material: Rolled Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Cap Start, Induction Run
• Output @ Frequency: .250 HP @ 60 HZ
• Phase: 1
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 208.0 V @ 60 HZ, 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Haz Area Class and Group: CLI GP D; CLII GP F,G
• Haz Area Division: Division I
• Agency Approvals: CSA, UL
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 4.200 A @ 115.0 V, 2.100 A @ 230.0 V, 2.000 A @ 208.0 V
• Design Code: N
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 62.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 2.0 a
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• IP Rating: IP54
• KVA Code: L
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Termination: Flying Leads
• Motor Type: 3414L
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 13.22 IN
• Power Factor: 64
• Product Family: Hazardous Location Motor
• Pulley Face Code: Standard
• Rodent Screen: None
• Service Factor: 1.00
• Shaft Diameter: 0.625 IN
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 1725 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: Automatic Thermal Overload
• Winding Thermal 1 Location: EP
• Winding Thermal 2: None
• Haz Area Temp Code: T3C
• Application: Explosion Proof
• Output HP: 1/4
• Output KW: 0.19
• Frame NEMA: 56
• Mount NEMA: Base Mount
• Enclosure NEMA: XPFC
• Enclosure IEC: IP54
• Voltage: 115/208-230
• Frequency (Hz): 60
• Rated Motor Output Power: 1/4 HP
• Rated Motor Speed: 1725 RPM
• Rated Motor Voltage: 115V, 208-230V
• Rated Motor Current: 4.2/2.1-2.0 AMP
• Poles: 4
• Mounting: Rigid
• Number of Speeds: 1 Speed
• NEMA Design: N
• Duty: Continuous
• Orientation: Horizontal
• Ambient Temp: 40°C
• Shaft Length: 1.88"
• Country of Origin: USA
• Warranty: 3-Year
• Shaft Dia.: 0.625 in
• Full Load Current: 4.2 A/2-2.1 A
• End Plate: Standard
• Synchronous: 1800 rpm
• Efficiency: 62%
• Weight: 29.0 LB
• Motor Frequency: 60 Hz
• Motor Duty Cycle: Continuous Duty
• Motor Voltage: 208 Volt
• Motor RPM's: 1800 RPM
• Motor Voltage Phases: 1 Phase
• Motor Amperage (Full Load): 2 Amp
• Motor Frame Model: 56
• Motor NEMA Design: NEMA Design N
• Motor Insulation Class: Class B Insulation
• Motor Horsepower: 0.25 HP
• Motor Enclosure Type: Explosion-Proof Fan Cooled
• Manufacturer: Baldor-Reliance
• Motor Construction: Steel
