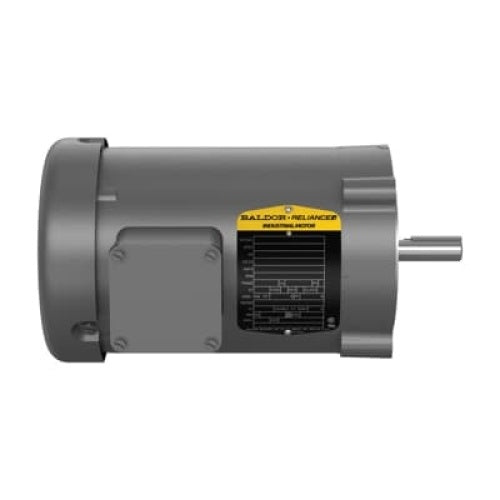

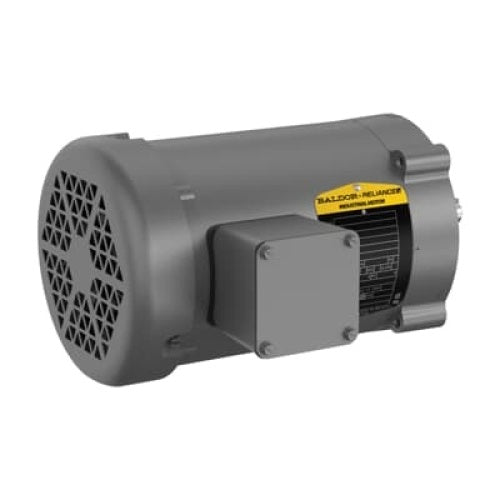

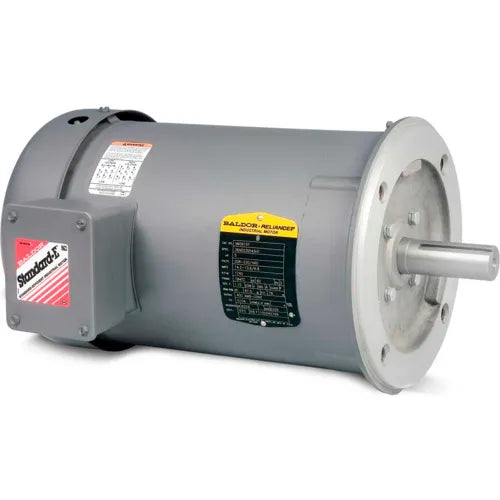

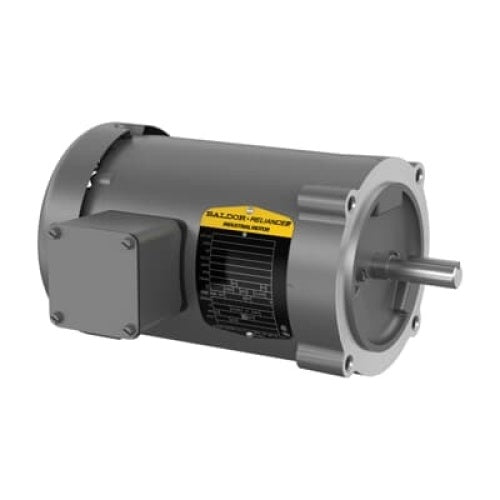

Baldor Motor VM3535 .33HP, 1140RPM, 3PH, 60HZ, 56C, 3414M, TEFC, F1

Product Description

The BALDOR MOTOR VM3535 is a .33HP, 1140RPM, 3PH, 60HZ, 56C, 3414M, TEFC, F1 motor. This three-phase electric motor is designed for general-purpose applications, including pumps, compressors, fans, conveyors, and machine tools. It features a heavy gauge steel frame and operates at 230/460 VAC. The motor is suitable for various industrial applications.

• 5/8" keyed output shaft
• Ball bearings
• Heavy gauge steel frame

Product Highlights

Designed for pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: VM3535

Technical Specifications

• Catalog Number: VM3535
• Enclosure: TEFC
• Frame: 56C
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: .330 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: No Mounting
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: .900 A @ 460.0 V 1.800 A @ 230.0 V 2.100 A @ 208.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 70.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: K
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3414M
• Mounting Arrangement: F1
• Number of Poles: 6
• Overall Length: 11.35 IN
• Power Factor: 51
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.35
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1140 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: Pumps, Fans, Conveyors, Machine Tools and Gear Reducers
• Output HP: 1/3
• Output KW: 0.25
• Frame Size NEMA: 56C
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 230/460
• Bearing Type: Ball
• Horsepower: 1/3 HP
• Amperage Rating: 0.9/1.8 A
• Torque Rating: 5.5 ft-lb
• Bearing Opp Drive End: 6203
• Drive End Flange: C-Face
• Mounting Location: C-Face Footless
• Full Load Efficiency: 70
• Nameplate RPM: 1140 rpm
• Full Load Amps: 1.8/.9 FLA
• Poles: 6
• RPM Range: 1101-1200 rpm
• Dimension C: 11.35 in
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor RPM's: 1200 RPM
• Motor Frequency: 60 Hz
• Motor Voltage: 460 Volt
• Motor Frame Model: 56C
• Motor Horsepower: 0.33 HP
• Motor NEMA Design: NEMA Design K
• Motor Insulation Class: Class B Insulation
• Manufacturer: Baldor-Reliance
• Motor Construction: Steel
• Amps @ 208V: 2.1 A
