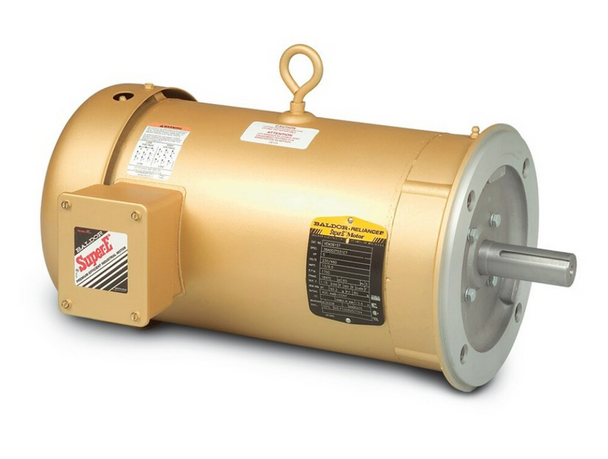

Baldor Motor VEM3711T 10HP 3490RPM 3PH 60HZ 215TC TEFC F

Product Description

The BALDOR MOTOR VEM3711T is a 10HP three-phase electric motor designed for pumps, fans, compressors, blowers, machine tools, conveyors, and other applications. It operates at 3490 RPM and is suitable for inverter use. The motor features a heavy gauge steel frame and is designed for longevity. The Super-E motors are designed to conserve energy over extended time periods.

• Ball bearings
• 1 3/8" keyed output shaft
• Heavy gauge steel frame

Product Highlights

This Baldor-Reliance AC Motor is a 10HP motor with a TEFC enclosure and a 215TC frame. It is suitable for general-purpose applications.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: VEM3711T
• Country of Origin: United States

Technical Specifications

• Catalog Number: VEM3711T
• Enclosure: TEFC
• Frame: 215T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 10.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
• Agency Approvals: CURUSEEV, NEMA PREMIUM, NEMA PREMIUM (OLD LOGO)
• Ambient Temperature: 40 °C
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltage: 24.900 A @ 208.0 V, 23.200 A @ 230.0 V, 11.600 A @ 460.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 90.2 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Duty
• KVA Code: G
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 14 AWG
• Motor Type: 3730M
• Mounting Arrangement: F1
• Number of Poles: 2
• Overall Length: 17.89 IN
• Power Factor: 88
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 1.375 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 3490 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Brand: Baldor
• Application: General Purpose
• Output HP: 10
• Output KW: 7.5
• Output RPM: 3505
• Frame Size NEMA: 215TC
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 208-230/460//190/380
• Type: Continuous Duty Type 3732M
• Application Type: General Purpose AC Motors, Fan & Blower Motors, Compressor Motors
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 24.8/24.2/12.1 A
• Frequency Rating: 60 Hz
• Number of Speeds: 1
• Shaft Size: 1-3/8 in
• Bearing Type: Ball
• Torque Rating: 14.94 ft-lb
• Mounting Style: C-Face/Footless
• Temperature Rating: 40 deg C
• Material: Steel
• Rated Load (HP): 10
• Model: BALDOR VEM3711T
• Country of Origin: United States
