Baldor Motor VEM3613T General Purpose Motor 5 HP

Product Description

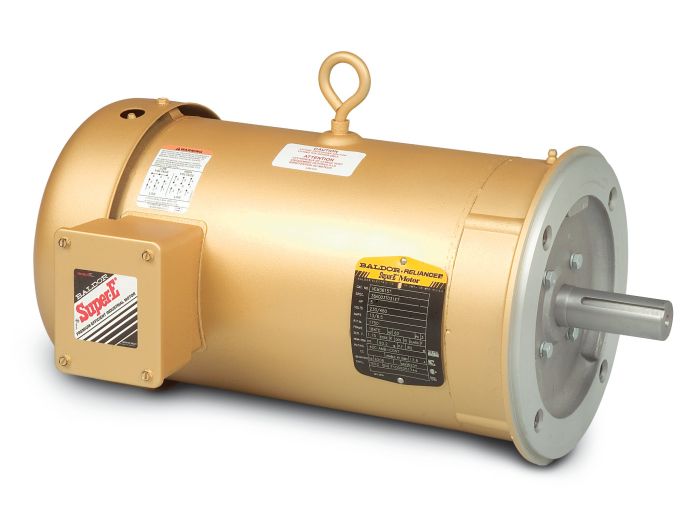

The Baldor Motor VEM3613T is a general-purpose motor with a three-phase design. This motor features a totally enclosed fan-cooled (TEFC) enclosure made from steel and is built to operate efficiently in various applications.

• Foot-mounted with a C-face
• Rated for five horsepower
• Inverter ready for flexible use

Product Highlights

The Baldor Motor VEM3613T is suitable for direct-on-line starting and operates at speeds of three thousand four hundred fifty or three thousand four hundred seventy RPM. It can handle ambient temperatures up to forty degrees Celsius, allowing it to be used in a range of environments.

Product Information

Standard Information

• Manufacturer Part Number: VEM3613T
• Enclosure: TEFC

Technical Specifications

• Frame: 184TC
• Frame Material: Steel
• Frequency: 60.00 Hz
• Output Power: 5.000 HP @ 60 Hz
• Voltage: 230.0 V @ 60 Hz / 460.0 V @ 60 Hz
• Current @ Voltage: 11.600 A @ 230.0 V / 5.800 A @ 460.0 V
• Efficiency @ 100% Load: 88.5%
• Duty Rating: CONT
• Dimensions: Overall Length 16.54 inches
• Weight: 75 lbs
