Baldor Motor VEM3561 3-Phase Motor 3 HP 56C TEFC F1

Product Description

Baldor Motor VEM3561 is a 3 HP, three-phase general purpose motor with a 56C frame, totally enclosed fan cooled (TEFC) enclosure and F1 mounting. It is rated for 60 Hz operation with a nameplate speed of about 1764 rpm, dual voltage 230/460 V, service factor 1.15, insulation class F, and continuous duty. The motor is inverter ready and features a 0.625 in shaft, ball pulley-end bearing, and flying leads with a KO box exit for industrial applications.

• Inverter ready with NEMA premium efficiency (89.5%) and insulation class F
• Electrical: 3 phase, 230/460 V, 60 Hz; nameplate amps 8.4/4.2; service factor 1.15
• Mechanical: 56C steel frame, 0.625 in shaft, ball pulley end bearing, F1 mounting

Product Highlights

3 HP, 230/460 V TEFC 56C general purpose motor; inverter ready; 1764 rpm; service factor 1.15

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: VEM3561

Technical Specifications

• Brand: Baldor Motor
• MPN: VEM3561
• Model/Spec Number: 36J035S266G3
• Motor Type: 3630M
• Product Family: General Purpose
• Horsepower: 3 HP
• Phase: 3
• Input Voltage: 230/460 V
• Frequency: 60 Hz
• Speed (RPM): 1764 rpm
• Synchronous Speed: 1800 RPM
• Frame Size: 56C
• Enclosure: TEFC
• Mounting Type: F1 (foot mounted)
• Number of Poles: 4
• Service Factor: 1.15
• Insulation Class: F
• Efficiency: 89.5%
• Duty Rating: Continuous (CONT)
• Inverter Rated: Inverter Ready (VPWM)
• Power Factor: 74%
• Output Current: 8.320 A @ 230 V; 4.160 A @ 460 V
• Nameplate Amps: 8.4/4.2
• Shaft Diameter: 0.625 in
• Shaft Extension Location: Pulley End
• Bearing Type: Ball (pulley end)
• Pulley Face Code: C-Face
• Lead Termination: Flying leads
• Lead Exit: KO Box
• Lead Quantity/Wire Size: 9 @ 16 AWG

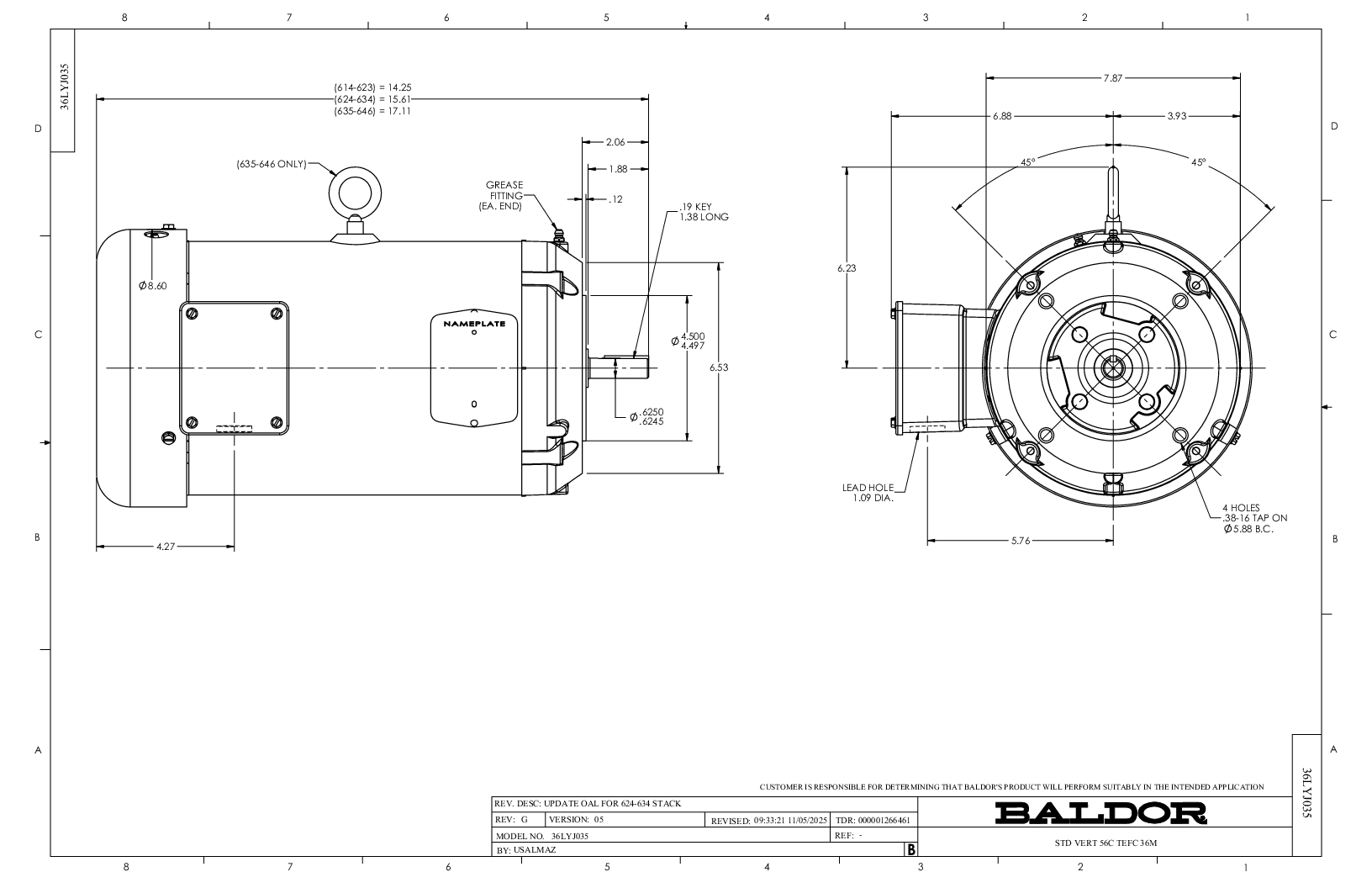

• Overall Length: 15.61 in
• Ambient Temperature Rating: 40 C
• Design Code: B
• Starting Method: Direct on line
• Enclosure Rating (IEC): IP44
