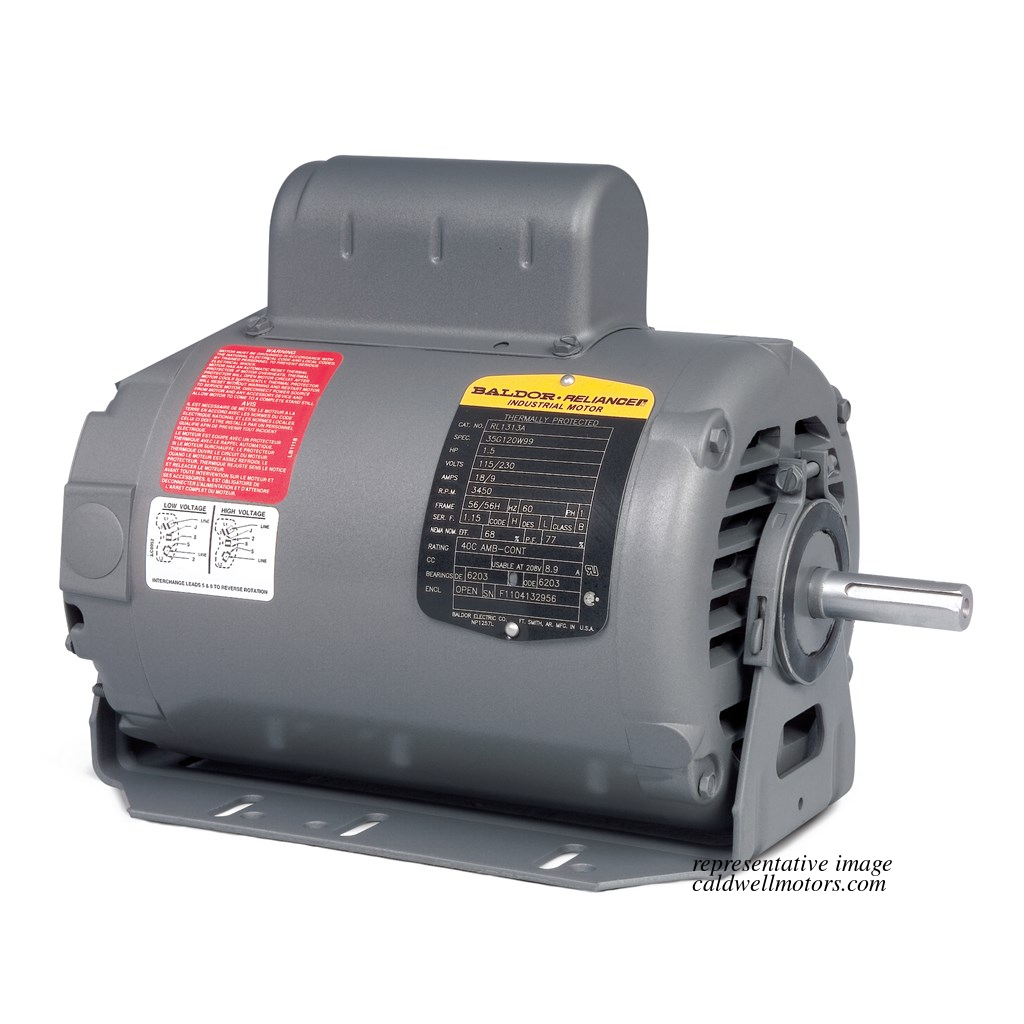

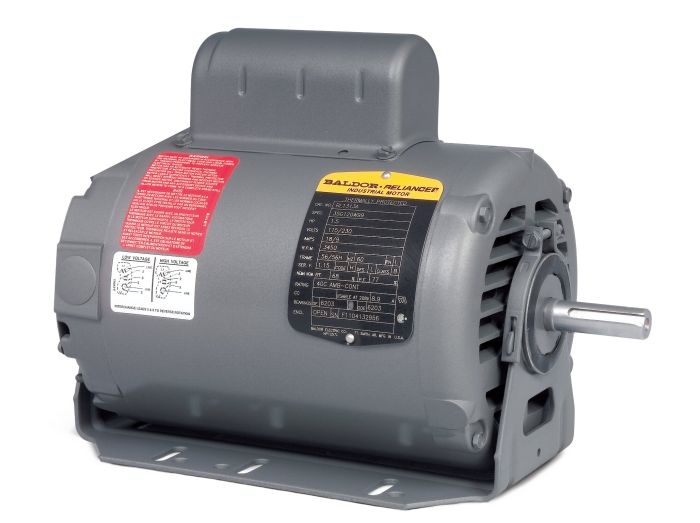

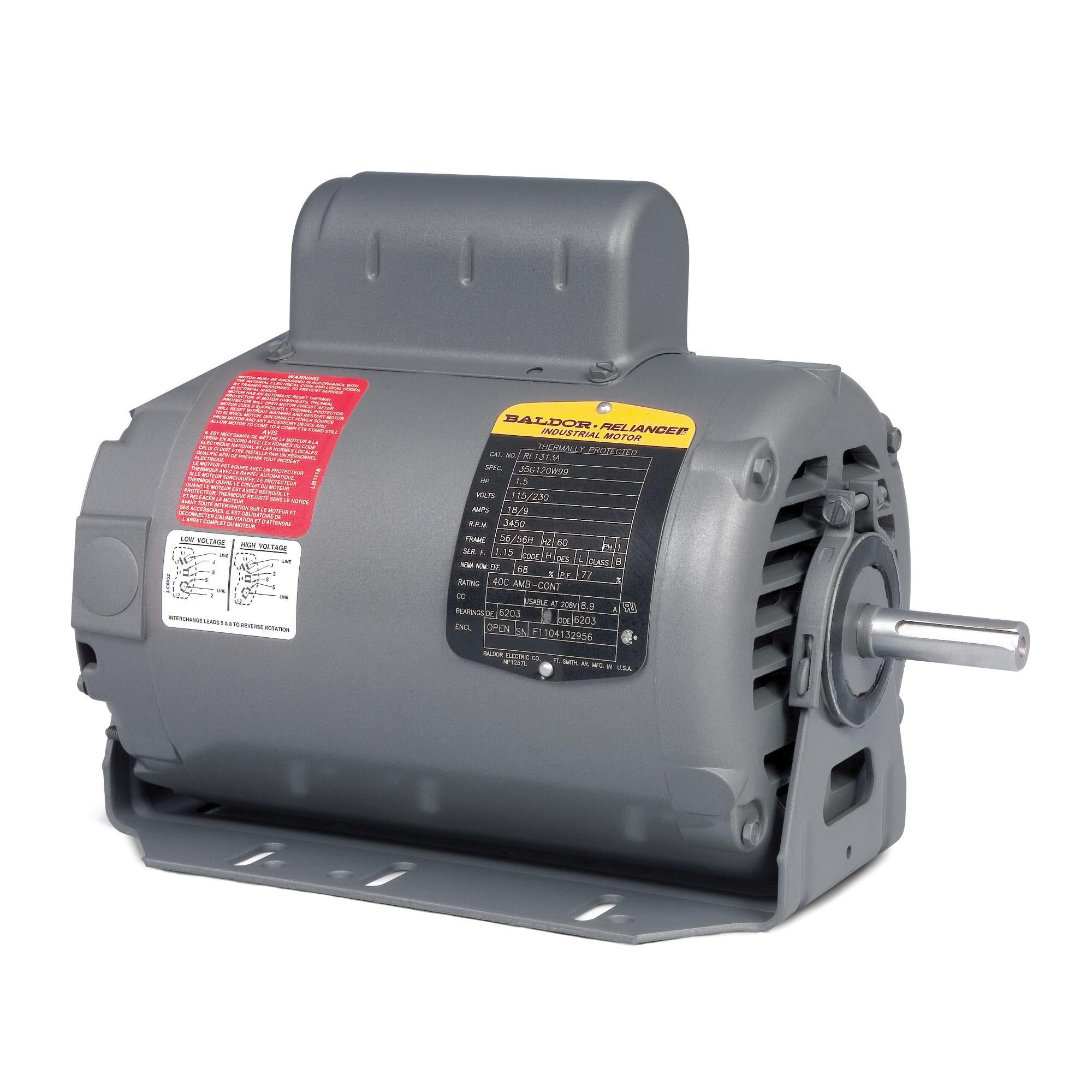

Baldor Motor RL1206A General Purpose AC Motor 0.33 HP

Product Description

The Baldor Motor RL1206A is a single-phase AC motor. It is designed for general purpose applications. The motor operates at one thousand seven hundred twenty-five RPM with a horsepower of 0.33 HP and a frequency of sixty Hertz.

• Operates on 115V or 230V at 60 Hz.
• Features a resilient mounting arrangement.
• Includes ball bearings for smooth operation.

Product Highlights

This motor is built with an open enclosure and a steel frame. It is designed for continuous duty and comes with automatic thermal overload protection.

Product Information

Standard Information

• Brand: Baldor
• Manufacturer Part Number: RL1206A

Technical Specifications

• Enclosure Type: Open
• Frame Size: 56
• Frequency: 60 Hz
• Motor Type: 3414L
• Horsepower: 0.33 HP
• Phase: 1 PH
• Speed: 1725 RPM
• Voltage: 115/230 VAC
• Current Rating: 3 A
• Mounting Type: Resilient
• Service Factor: 1.15
• Insulation Class: B
• Number of Poles: 4
• Bearing Type: Ball
• Rotation: Reversible/Connected Standard
• Ambient Temperature: 40 °C
• Duty Rating: CONT
• Agency Approvals: C UR US
• Shaft Diameter: 0.625 IN
• Overall Length: 10.96 IN
• Weight: 24 lb
• Efficiency: 60.0 %
• Motor Standards: NEMA
