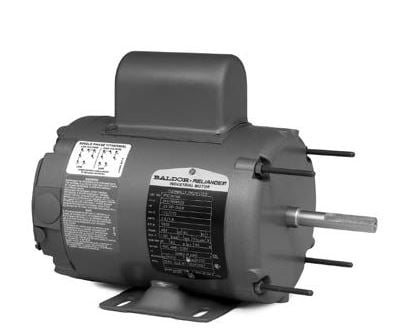

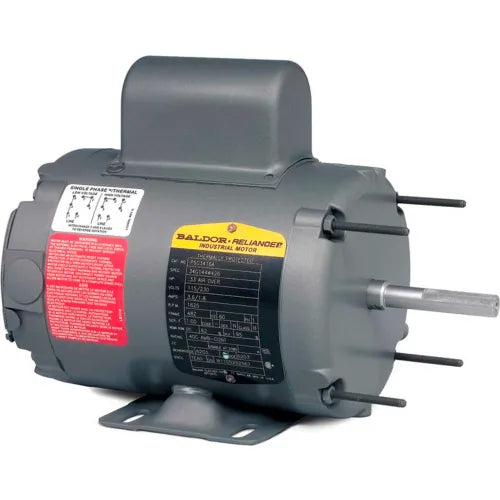

Baldor MOTOR PSC3416A .33HP 1625 RPM 1PH 60HZ 48Z

Product Description

The Baldor MOTOR PSC3416A is a .33HP motor that runs at 1625 RPM. This single-phase motor operates at 60Hz and features a 48Z frame size. With a 3414C motor type and TEAO enclosure, it’s built for direct drive fan applications. The motor is constructed with a sturdy steel frame for durability.

• TEAO (Totally Enclosed Air Over) design protects against dust and moisture.
• Continuous operation is possible with moderate starting loads.
• Easy installation occurs through the terminal panel.

Product Highlights

This motor is ideal for general purpose machinery and offers reliable performance in various applications.

Product Information

Standard Information

• Catalog Number: PSC3416A
• Enclosure: TEAO

Technical Specifications

• Frame Size: 48Z
• Frame Material: Steel
• Frequency: 60.00 Hz
• Power Output: .330 HP @ 60 Hz
• Voltage: 115.0 V / 230.0 V @ 60 Hz
• Efficiency: 62.0%
• Current: 1.800 A @ 230.0 V / 3.600 A @ 115.0 V
• Mounting Arrangement: F1
• Rated RPM: 1625
• Dimensions: 11.34 in x 11.125 in x 10 in
