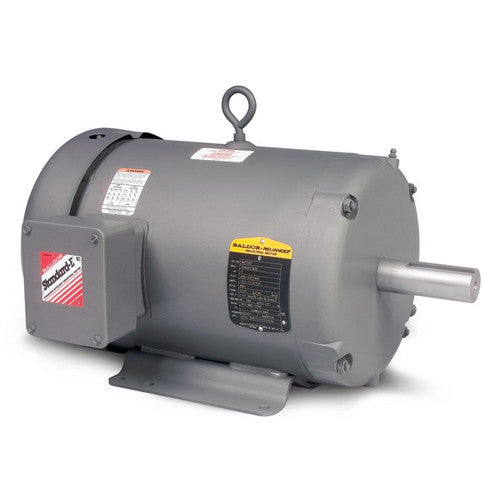

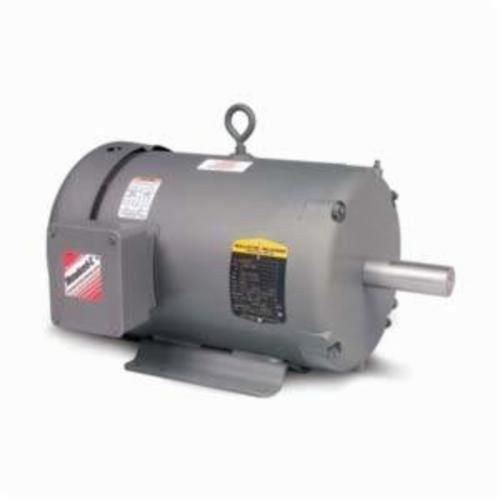

Baldor Motor M3535 AC Motor 0.33HP 1140RPM 3PH 60HZ 56 TEFC F1

Product Description

The BALDOR MOTOR M3535 AC motor is designed for pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available. It operates at 230/460V and 1140 RPM. The motor features a TEFC enclosure and a 56 frame. It is suitable for general purpose use.

• Ball bearings
• 5/8" Keyed output shaft
• Heavy gauge steel frames

Product Highlights

This Baldor motor is designed for longevity and is suitable for mounting in any position with its rigid base.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: M3535

Technical Specifications

• Catalog Number: M3535
• Enclosure: TEFC
• Frame: 56
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: .330 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: .900 A @ 460.0 V 1.800 A @ 230.0 V 2.100 A @ 208.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 70.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 0.9 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: K
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3414M
• Mounting Arrangement: F1
• Number of Poles: 6
• Overall Length: 11.35 IN
• Power Factor: 51
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.35
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1140 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: General Purpose
• Output HP: 1/3
• Output KW: 0.25
• Frame Size NEMA: 56
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 230/460 VAC
• Bearing Type: Ball
• Horsepower: 1/3 hp
• Amperage Rating: 0.9/1.8 A
• Standard & Approvals: NEMA, CSA Certified, UR Standard
• Torque Rating: 5.5 ft-lb
• Current: 2.1 A/208 V 1.8 A/230 V 0.9 A/460 V
