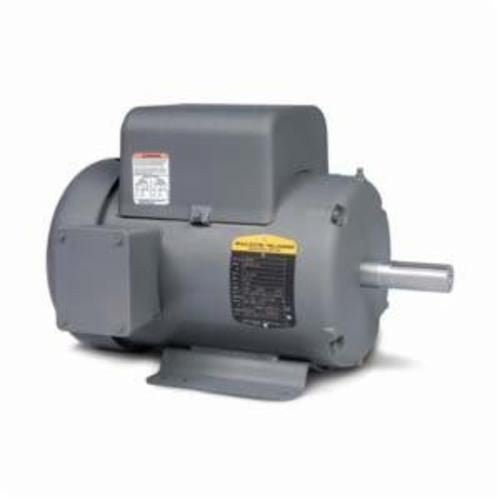

Baldor Motor L3514T 1.5HP, 1725RPM, 1PH, 60HZ, 145T, 3532LC, TEFC

Product Description

The BALDOR MOTOR L3514T is a 1.5HP, 1725RPM, 1PH, 60HZ, 145T, 3532LC, TEFC motor. It operates at 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, and 230.0 V @ 60 HZ. The motor features a steel frame and is suitable for general-purpose applications. It is designed with a rigid base for secure mounting and has a reversible shaft rotation.

• Enclosure: TEFC
• Frame: 145T
• Frequency: 60.00 Hz

Product Highlights

This motor is reliable, energy efficient, and readily available. It is made in the USA and RoHS compliant.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: L3514T
• Country of Origin: US

Technical Specifications

• Catalog Number: L3514T
• Enclosure: TEFC
• Frame: 145T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Cap Start, Cap Run
• Output @ Frequency: 1.500 HP @ 60 HZ
• Phase: 1
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 115.0 V @ 60 HZ, 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltage: 12.200 A @ 115.0 V, 6.100 A @ 230.0 V, 6.900 A @ 208.0 V
• Design Code: L
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 80.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Not Inverter
• KVA Code: H
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 6 @ 18 AWG
• Motor Type: 3532LC
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 14.16 IN
• Power Factor: 98
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 0.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1725 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Base RPM: 1800
• Voltage: 115/208-230V 60 Hz
• Construction: Rolled Steel
• Enclosure Rating: IP44
• Number of Speeds: 1
• Bearing Type: Ball
• Temperature Rating: 40 deg C
• Standard & Approvals: CSA Certified, UL Listed, RoHS Compliant, NEMA
• Horsepower: 1.5 hp
• Voltage Rating: 115/208/230 VAC
• Torque Rating: 13.9 ft-lb
• Shaft Size: 7/8 in Dia
• Amperage Rating: 7/7.3/14 A
• Application: Compressors, Pumps, Fans, Farm Equipment, Conveyors, Material Handling Equipment and Machine Tools
• HP: 1.5
• Hz: 60
• Motor Weight: 44
• Synchronous RPM: 1800
• Output: 1. 5
• Poles: 04
• Class: STOCK
• Type: 3526LC
• Status: Active
• Origin: US
• Explosion Proof Class/Group: NONE
• Revision: F
• Prod. Type: 3526LC
• Insulation: F
• Full Load Torque: 4. 48 LB-FT
• Start Configuration: DOL
• No-Load Current: 3. 75 Amps
• Break-Down Torque: 13. 9 LB-FT
• Pull-Up Torque: 9 LB-FT
• Temp. Rise @ Rated Load: 77°C
• Locked-Rotor Torque: 12. 4 LB-FT
• Temp. Rise @ S. F. Load: 95°C
• Starting Current: 56. 1 Amps
