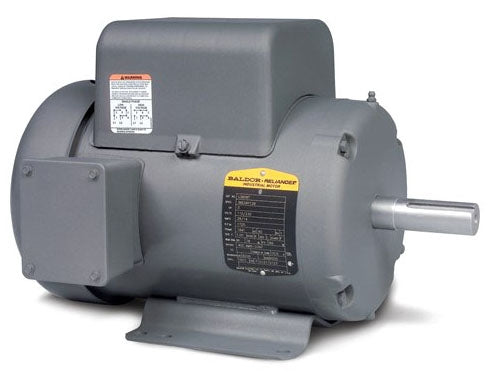

Baldor Motor L3514 Motor 1.5 Hp 1PH 1800 Rpm

Product Description

The BALDOR MOTOR L3514 is a general purpose single-phase electric motor rated at 1.5 horsepower and 1800 RPM. Designed for standard industrial and commercial drive applications, it delivers consistent rotational output for equipment that requires a reliable open-drip-proof or enclosed motor in the fractional-to-integral horsepower range. Weighing 49 pounds, this is a substantial, full-frame motor suited for pumps, compressors, fans, conveyors, and similar motor-driven loads. Licensed electricians and mechanical contractors are the typical installers for this class of motor.

The L3514 is appropriate for single-phase power supply applications in light industrial, commercial, and agricultural settings. It fits installations where three-phase service is unavailable and a 1.5 HP drive source is required. Common applications include small air compressors, agricultural equipment drives, conveyor systems, and HVAC accessory loads. This motor class is routinely specified when a durable, single-phase solution is needed for continuous-duty operation.

Key Features

• 1.5 HP output for moderate-duty continuous drive applications
• Single-phase design compatible with standard residential and light commercial power supplies
• 1800 RPM synchronous speed for direct-drive and belt-drive configurations
• Substantial 49-pound frame construction indicating a full iron-frame motor build
• Suitable for pumps, fans, compressors, and conveyor drive applications

Compatibility

Designed as an OEM-style replacement or direct-install general purpose single-phase motor for applications requiring a 1.5 HP, 1800 RPM drive source on single-phase power.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for motor branch circuits, including proper overcurrent protection and disconnect means. Disconnect and lock out all power to the circuit before mounting or wiring the motor. Verify that the supply voltage and frequency match the motor nameplate before energizing. Ensure the mounting base and coupling or belt alignment are secure before initial startup.

Technical Specifications

• Horsepower: 1.5 HP
• Phase: Single Phase
• Speed: 1800 RPM
• Weight: 49 pounds
• UPC: 78156810053

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: L3514
