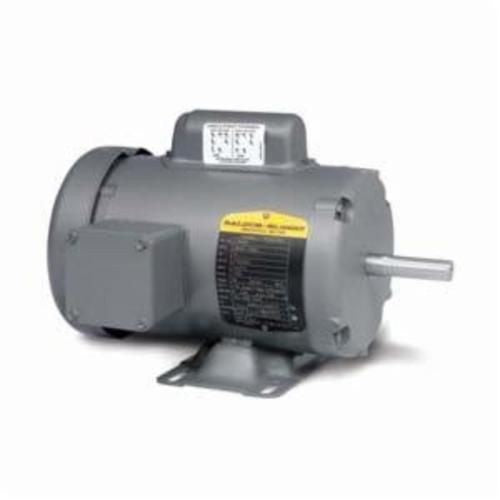

Baldor Motor L3501 1/3HP 1725RPM 56 TEFC 1PH Motor

Product Description

The BALDOR MOTOR L3501 is a 1/3HP general-purpose single-phase motor designed for various applications, including compressors, pumps, fans, and machine tools. It operates at 1725 RPM with a 56 NEMA frame. The motor features a TEFC enclosure and is suitable for use with 115/230 voltage at 60 Hz.

• Features ball bearings for smooth operation.
• Constructed with a heavy gauge steel frame for durability.
• Equipped with a snap action starting switch for reliability.

Product Highlights

This motor is ideal for industrial applications requiring a reliable and versatile power source.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: L3501
• Country of Origin: USA

Technical Specifications

• Application: General Purpose
• Output HP: 1/3
• Output KW: 0.25
• Output RPM: 1725
• Frame NEMA: 56
• Mount NEMA: Base Mount
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 115/230
• Frequency: 60 Hz
• Enclosure: TEFC
• Frame Material: Steel
• Motor Letter Type: Cap Start, Cap Run
• Phase: 1
• Agency Approvals: CURUS, UKCA, WEEE, CE, C UR US
• Ambient Temperature: 40 °C
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltage: 2.000 A @ 220.0 V, 4.000 A @ 110.0 V
• Duty Rating: CONT
• Efficiency @ 100% Load: 68.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: L
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 6 @ 18 AWG
• Motor Type: 3418LC
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 11.97 IN
• Power Factor: 83
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.35
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1425 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Frequency Rating: 60 Hz
• Material: Steel
• Mounting Type: F1
• Number of Speeds: 1
• Amperage Rating: 3/6 A
• Shaft Size: 5/8 in Dia
• Temperature Rating: 40 deg C
• Standard & Approvals: CSA Certified, UL Listed, RoHS Compliant, NEMA
• Bearing Type: Ball
• Horsepower: 1/3 hp
• Torque Rating: 2.95 ft-lb
• Poles: 4
• Duty: Continuous
• DE Bearing: 6203ZZ
• NDE Bearing: 6203ZZ
• Shaft Length: 1.875"
• Grease Type: Polyrex EM
• Greaseable: Yes
• Hazardous Locations: CSA Certified
