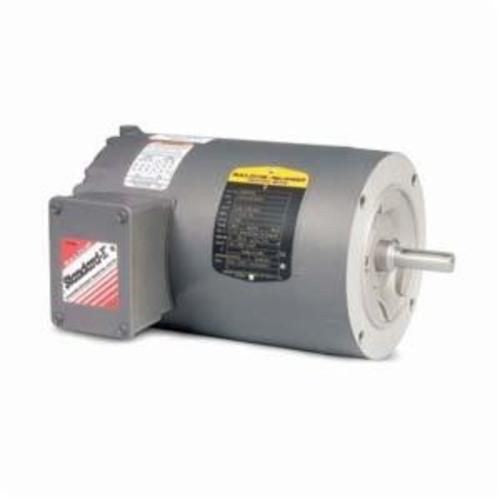

Baldor Motor KM3457 .33HP, 3450RPM, 3PH, 60HZ, 56C, 3410M, TENV, F1

Product Description

The BALDOR MOTOR KM3457 is a .33HP, 3450RPM, 3PH, 60HZ, 56C, 3410M, TENV, F1 motor with a steel frame. It is suitable for general-purpose applications. The motor is designed for direct on-line starting and features a reversible shaft rotation. It operates at 230.0 V @ 60 HZ or 460.0 V @ 60 HZ.

• Heavy gauge steel frame
• Ball bearings
• Locked drive end bearing

Product Highlights

This motor is ideal for pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: KM3457

Technical Specifications

• Catalog Number: KM3457
• Enclosure: TENV
• Frame: 56C
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: .330 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: C UR US
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: No Mounting
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: .700 A @ 460.0 V 1.400 A @ 230.0 V 1.600 A @ 208.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 72.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 0.7 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: P
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3410M
• Mounting Arrangement: F1
• Number of Poles: 2
• Overall Length: 10.25 IN
• Power Factor: 64
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.35
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 3450 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: General Purpose
• Output HP: 1/3
• Output KW: 0.25
• Frame Size NEMA: 56C
• Mount NEMA: C Face No Base
• Enclosure NEMA: TENV
• Enclosure IEC: IP44
• Voltage: 230/460
• Material: Steel
• Number of Speeds: 1
• Amperage Rating: 0.7/1.4 A
• Bearing Type: Ball
• Catalog ID: BDRKM3457
• Temperature Rating: 40 deg C
• Torque Rating: 3.4 ft-lb
• Standard & Approvals: CSA Certified, UL Listed, RoHS Compliant, NEMA
