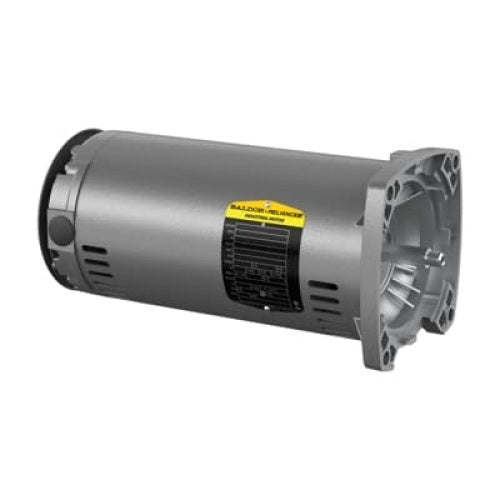

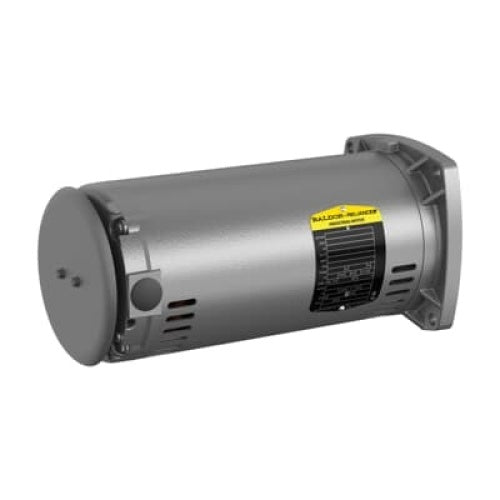

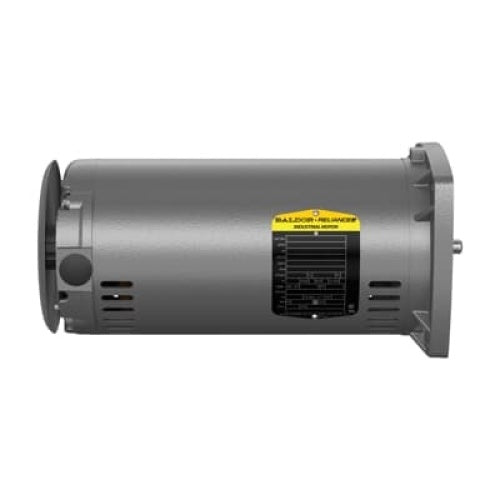

Baldor Motor JSM3120 1.5HP, 3450RPM, 3PH, 60HZ, 56YZ, 3424M, Open, F

Product Description

The BALDOR MOTOR JSM3120 is a 1.5HP motor operating at 3450RPM, designed for three-phase ODP applications. It features a corrosion-resistant stainless steel shaft extension and a dynamically balanced rotor that reduces noise and enhances bearing life. Built with heavy-gauge steel, this motor is engineered for durability and reliability. It includes a safeguard drip cover for additional protection during operation.

• Stainless steel shaft extension resistant to corrosion
• Rotor dynamically balanced to minimize noise and extend bearing life
• Sturdy, heavy-duty steel construction

Product Highlights

Ideal for square flange pumps, swimming pool pumps, general-purpose pumps, commercial machinery, food and beverage processing, wastewater management, and agricultural use.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: JSM3120
• Country of Origin: US

Technical Specifications

• Catalog Number: JSM3120
• Enclosure: ODP
• Frame: 56YZ
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 1.500 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: No Mounting
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 2.000 A @ 460.0 V 4.000 A @ 230.0 V 4.700 A @ 208.0 V
• Design Code: B
• Drip Cover: Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 81.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• Front Face Code: Drip Cover Mounting
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• IP Rating: NONE
• KVA Code: L
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Terminal Panel Or Lead Hole
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3424M
• Mounting Arrangement: F1
• Number of Poles: 2
• Overall Length: 12.77 IN
• Power Factor: 89
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Pool Pump
• Pulley Shaft Indicator: Ext Thread & Tapped Hole
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 3450 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• HP: 1.5
• Hz: 60
• Motor Weight: 31
• RPM: 3450
• Synchronous RPM: 3600
• Voltage: 230/460
• Output: 1. 5
• Specification Number: 34L408X480G1
• Weight: 31. 000 LB
• Item Type: MOTOR
• Manufacturing Plant: WESTVILLE
• Poles: 02
• Class: STOCK
• Type: 3424M
• Status: Active
• Commodity Code: 8501. 52. 4000
• Origin: US
• Explosion Proof Class/Group: NONE
• Revision: E
• Prod. Type: 3424M
• Elec. Spec: 34WGX480
• CD Diagram: CD0005
• Mech. Spec: 34L408
• Layout: 34LYL408
• Mounting: Square Flange / Round Body
• Base: N
• Rotation: R
• Insulation: B
• Leads: 9#18
• Full Load Torque: 2. 3 LB-FT
• Start Configuration: DOL
• No-Load Current: 1 Amps
• Break-Down Torque: 10. 1 LB-FT
• Line-line Res. @ 25°C.: 0. 922 Ohms A Ph / 0 Ohms B Ph
• Pull-Up Torque: 7. 7 LB-FT
• Temp. Rise @ Rated Load: 35°C
• Locked-Rotor Torque: 10 LB-FT
• Temp. Rise @ S. F. Load: 40°C
• Starting Current: 17 Amps
• Rated Motor Output Power: 1 1/2 HP
• Rated Motor Speed: 3600 RPM
• Rated Motor Voltage: 230V, 460V
• Rated Motor Current: 2 AMP
• Nominal Efficiency: 81.5
• Nominal Power Factor: 89
• Leads (Qty, Size): 9
• Connection: -
• Start Capacitor: -
• Run Capacitor: -
• MFD: -
• VFD (S.F. 1.0) Ratio: -
• VFD (S.F. 1.0) Hz: -
• Variable Torque: -
• Constant Torque: -
• Number of Speeds: -
• Approximate Weight: 31lb
• Double Drilled: No
• C-Dimension: 12.77"
• NEMA Design: B
• Degree of Protection (IP): -
• Duty: -
• Conduit Box Location: -
• Removable Feet: No
• Orientation: -
• Full Load Temperature Rise: -
• Temp Code: -
• DE Bearing: 6203
• NDE Bearing: 6203
• Shaft Length: 1.875"
• Grease Type: Polyrex EM
• Greaseable: Yes
• Hazardous Locations: CSA Certified
• Temp Code (Sine Wave Power): -
• Temp Code (VFD Power): -
• Manufacturer: Baldor-Reliance
• Motor Voltage Phases: 3 Phase
• Motor Horsepower: 1.5 HP
• Motor Frequency: 60 Hz
• Motor Duty Cycle: Continuous Duty
• Motor NEMA Design: NEMA Design B
• Motor Voltage: 460 Volt
• Motor RPM's: 3600 RPM
• Motor Amperage (Full Load): 2 Amp
• Motor Enclosure Type: Open
• Motor Frame Model: 56YZ
• Motor Construction: Steel
• Brand: Baldor
• MPN: JSM3120
• Country of Origin: United States
