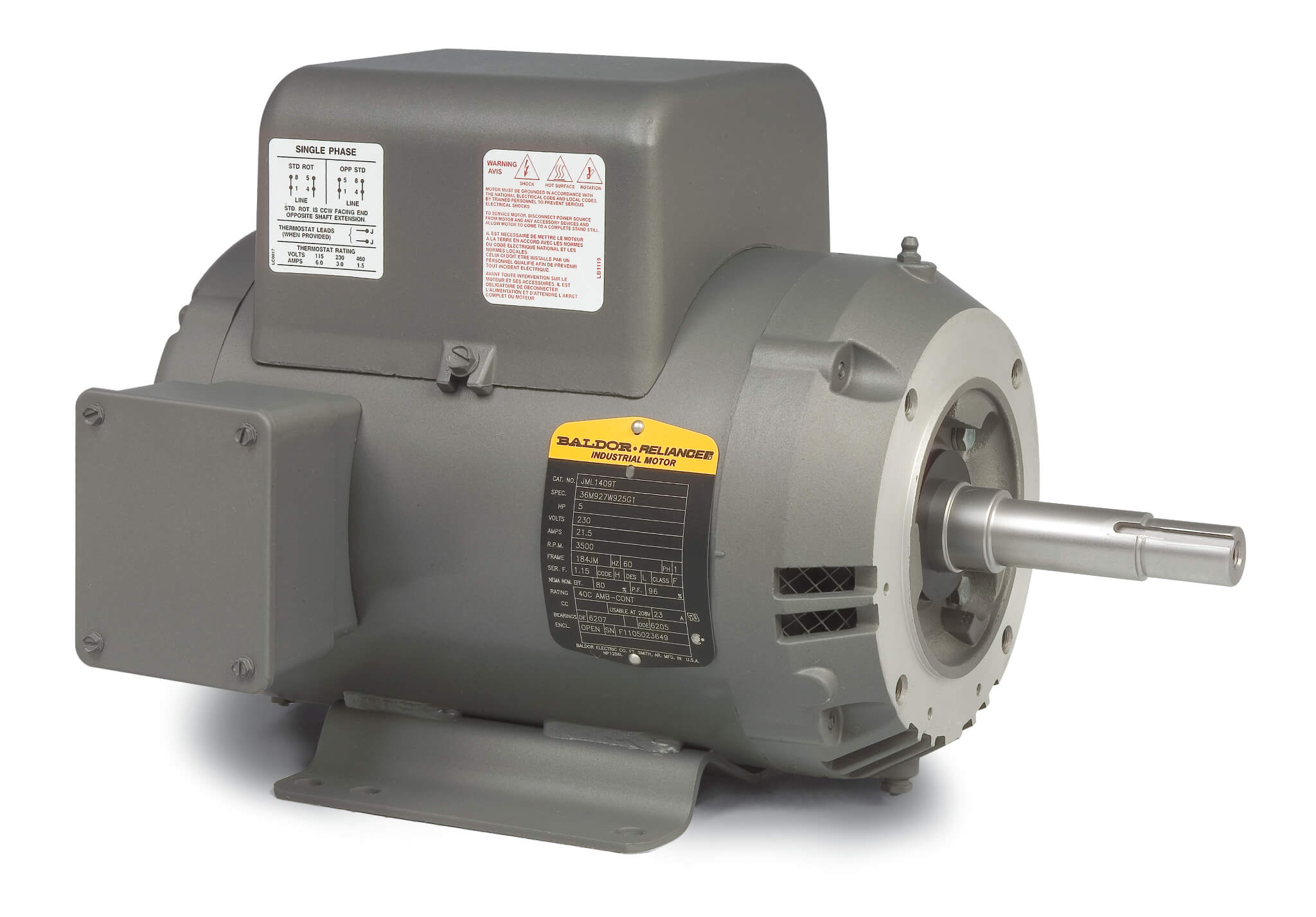

Baldor Motor JML1409T General Purpose Motor 5 hp ODP

Product Description

The Baldor Motor JML1409T is a single-phase, sixty Hertz general-purpose motor designed for a variety of applications. This motor features a foot-mounted steel frame and an open dripproof enclosure suitable for continuous duty operation.

• Single-phase operation for versatility
• Open dripproof enclosure protects against moisture
• NEMA design code L ensures reliability

Product Highlights

This motor can be used in pumps, fans, conveyor belts, compressors, and machine tools. It offers a rigid base for horizontal mounting and operates with Class F insulation, making it ideal for industrial uses.

Product Information

Standard Information

• Brand: Baldor Motor
• MPN: JML1409T

Technical Specifications

• Motor Type: 3634LC
• Rated Output: 5 hp
• Output Power: 3.73 kW
• Synchronous Speed: 3600 RPM
• Full Load Speed: 3400-3600 RPM
• Number of Poles: 2
• Frequency: 60 Hz
• Input Voltage: 230 V AC
• Full Load Amps: 21.5 A
• Efficiency: 80%
• Insulation Class: F
• Enclosure: ODP
• Frame Size: 184JM
• Weight: 81 lb
• Shaft Diameter: 0.875 inches
• Shaft Length: 3 5/8 inches
• Duty Rating: CONT
• Locked Rotor Torque: 12.02 lb-ft
