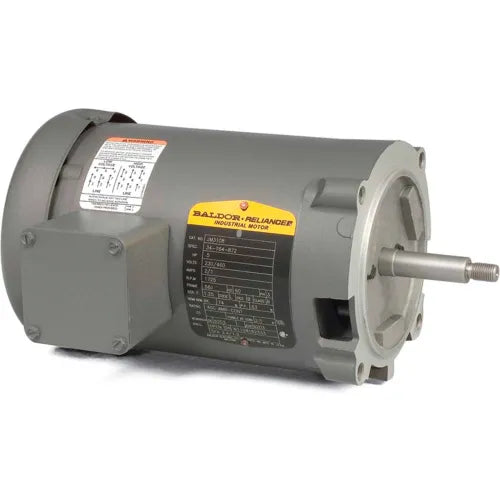

Baldor Motor JM3116 1HP 1725RPM 3PH 60HZ 56J

Product Description

The Baldor Motor JM3116 is a one horsepower motor designed for a range of applications including pumps and other machinery. Operating at 1725 RPM, this motor is suitable for use in both residential and industrial settings. The motor features a robust diecast aluminum construction and a stainless steel shaft extension which enhances durability.

• Open drip-proof enclosure
• Three phase motor
• Designed for continuous duty applications

Product Highlights

This motor works well in various pumping scenarios, consistently delivering reliable performance. It operates at multiple voltages to suit different setups and is designed for easy installation in a variety of environments.

Product Information

Standard Information

• Brand: Baldor-Reliance
• Motor Type: Jet Pump Motor

Technical Specifications

• Catalog Number: JM3116
• Enclosure: ODP
• Frame Size: 56J
• Horsepower: 1 HP
• RPM: 1725 RPM
• Voltage: 208-230/460 V
• Full Load Amps: 3.7 A @ 208 V; 3.4 A @ 230 V; 1.7 A @ 460 V
• Efficiency: 78.5%
• Frequency: 60 Hz
• Duty Rating: Continuous Duty
• Motor Standards: NEMA
• Weight: 29 pounds
• Mounting Type: C-Face / Footless
• Ambient Temperature: 40 °C
