Baldor Motor Jm3108 .5hp, 1720rpm, 3ph, 60hz, 56j, 3416m, Open, F1

Product Description

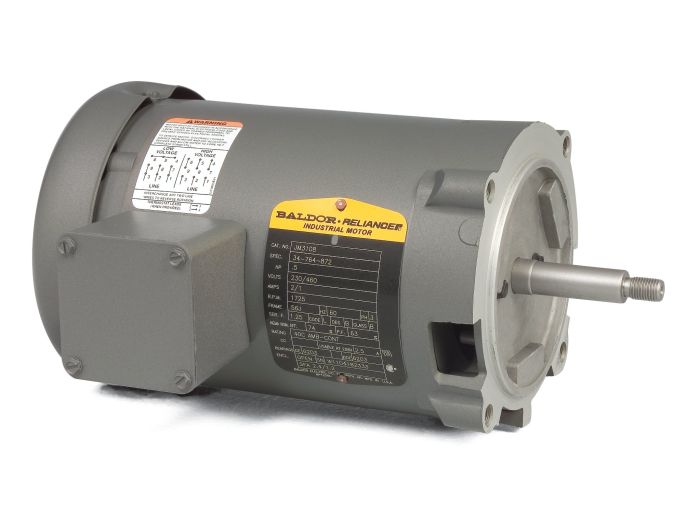

The BALDOR MOTOR JM3108 is a .5HP, 1720RPM, 3PH, 60HZ, 56J, 3416M, OPEN, F1 motor with a steel frame. Designed for residential and industrial pumps, swimming pool pumps, etc. where three phase power is available. It operates at 230.0 V @ 60 HZ and 460.0 V @ 60 HZ.

• Features a 5/8" keyed output shaft w/.44-20 UNF 2A R.H. Thread
• Corrosion resistant stainless steel shaft extension
• Dynamically balanced rotor to reduce noise and increase bearing life

Product Highlights

This motor is suitable for jet pump applications and has an optimized airflow design.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: JM3108
• Country of Origin: US

Technical Specifications

• Catalog Number: JM3108
• Enclosure: OPEN
• Frame: 56J
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: .500 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Agency Approvals: C UR US
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: No Mounting
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: .800 A @ 460.0 V 1.600 A @ 230.0 V 1.700 A @ 208.0 V
• Design Code: B
• Drip Cover: Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 75.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 0.8 a
• Front Face Code: Drip Cover Mounting
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• KVA Code: J
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3416M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 11.85 IN
• Power Factor: 75
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Ext Thread
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.25
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1720 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: Jet Pump
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 1720
• Frame Size NEMA: 56J
• Mount NEMA: C Face No Base
• Enclosure NEMA: OPEN
• Enclosure IEC: IP23
• Voltage: 230/460
• Motor Weight: 23
• RPM: 1,725 RPM
• AC Voltage: 230 VAC
• Nominal Voltage: 208 VAC, 240 VAC
• Mounting: Footless
• Composition: Steel
• Net Weight: 22 lbs
• Gross Weight: 23 lbs
• Country of Origin: United States
• HP: 0.5
• Hz: 60
• Synchronous RPM: 1800
• Output: . 5
• Specification Number: 34-764-872
• Item Type: MOTOR
• Manufacturing Plant: WESTVILLE
• Poles: 04
• Class: STOCK
• Type: 3416M
• Status: Active
• Commodity Code: 8501. 51. 4040
• Origin: US
• Explosion Proof Class/Group: NONE
• Revision: P
• Prod. Type: 3416M
• Elec. Spec: 34WG0872
• CD Diagram: CD0005
• Mech. Spec: 34-0764
• Layout: 34LY0764
• Base: N
• Rotation: R
• Insulation: B
• Leads: 9#18
• Nameplate No.: NP1256L
• AMP: 2/1
• SER. F.: 1. 25
• CODE: L
• DES: B
• NEMA-NOM-EFF: 74
• PF: 63
• RATING: 40C AMB-CONT
• CC: USABLE AT 208V
• DE: 6203
• ODE: 6203
• ENCL: OPEN
• SN: SFA 2. 4/1. 2
• Full Load Torque: 1. 5 LB-FT
• Start Configuration: DOL
• No-Load Current: 0. 8 Amps
• Break-Down Torque: 7 LB-FT
• Line-line Res. @ 25°C.: 32 Ohms A Ph / 0 Ohms B Ph
• Pull-Up Torque: 4. 5 LB-FT
• Temp. Rise @ Rated Load: 48°C
• Locked-Rotor Torque: 5. 3 LB-FT
• Temp. Rise @ S. F. Load: 57°C
• Starting Current: 6. 5 Amps
