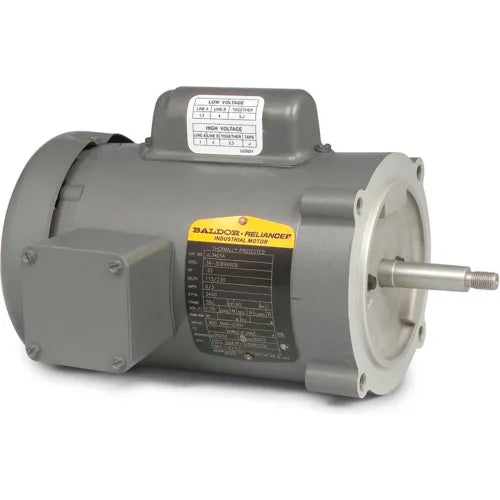

Baldor Motor JL3504A General Purpose Motor 0.5 HP

Product Description

The Baldor Motor JL3504A is a general-purpose motor suitable for various applications. It features a totally enclosed fan-cooled (TEFC) design, protecting it from contaminants in the environment. This motor operates on a single-phase power supply at 60Hz and is ideal for continuous duty tasks. It comes with a 56J frame and complies with NEMA standards.

• Enclosure Type: TEFC
• Power: 0.5 HP
• Speed: 1725 RPM

Product Highlights

The JL3504A motor is designed for efficiency and reliability in multiple settings.

Product Information

Standard Information

• Brand: Baldor Motor
• Manufacturer Part Number: JL3504A

Technical Specifications

• Horsepower: 0.5 HP
• Speed: 1725 RPM
• Phase: 1
• Frequency: 60 Hz
• Frame: 56J
• Voltage: 115 V @ 60 Hz, 230 V @ 60 Hz
• Current: 3.700 A @ 230.0 V, 4.300 A @ 208.0 V, 7.400 A @ 115.0 V
• Ambient Temperature: 40 °C
• Service Factor: 1.25
• Insulation Class: B
• Duty Rating: Continuous
• Synchronous Speed: 1800 RPM @ 60 Hz
• Overall Length: 12.85 inches
• Shaft Diameter: 0.625 inches
• Weight: 27.000 LB
