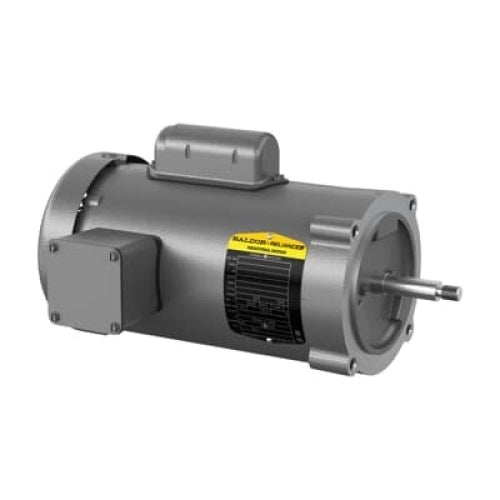

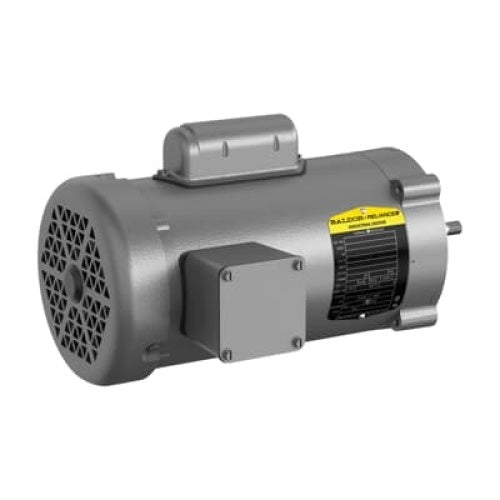

Baldor Motor JL3503A 1/2HP 3450RPM 56J TEFC 1PH Jet Pump Motor

Product Description

The BALDOR MOTOR JL3503A is a 1/2 HP single-phase TEFC jet pump motor designed for residential and industrial pumps, swimming pool pumps, and other pumping systems where single-phase power is available. It features a sturdy steel frame and cast aluminum end plates for mechanical reliability. The opposite drive end shaft is slotted for convenience.

• Automatic thermal overload protection
• Corrosion resistant stainless steel shaft extension
• Slotted opposite drive end shaft for easy installation

Product Highlights

Designed for residential and industrial pump applications. Features a steel frame and dynamically balanced rotor to reduce noise and increase bearing life.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: JL3503A

Technical Specifications

• Application: Jet Pump
• Output HP: 1/2
• Output KW: 0.37
• Output RPM: 3450
• Frame NEMA: 56J
• Mount NEMA: C-Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 115/208-230 Volts
• Frequency (Hz): 60
• Brand: Baldor
• Mfg. Number: JL3503A
• Product Type: 56J Jet Pump Motor
• Phase: 1 ph
• Synchronous Speed: 3600 RPM
• Speed Code: Single Speed
• High Voltage Full Load Amps: 3.7 Amps
• Frame Size: 56J
• Motor Type: 3420L
• Motor Standards: NEMA
• Number of Poles: 2
• Pulley Face Code: C-Face
• Frame Material: Steel
• Motor Lead Quantity/Wire Size: 4 @ 18 AWG
• Overall Length: 12.85 in
• Service Factor: 1.6
• Efficiency @ 100% Load: 62.00%
• Duty Rating: CONT
• Inverter Code: Not inverter
• Auxillary Box: No Auxillary Box
• Base Indicator: No Mounting
• Bearing Grease Type: POLYREX EM (-20F +300F)
• Design Code: N
• Drip Cover: No Drip Cover
• Heater Indicator: No heater
• KVA Code: K
• Motor Lead Exit: KO Box
• Motor Lead Termination: Flying Leads
• Rodent Screen: None
• Shaft Diameter: 0.625 in
• Insulation Class: B
• Power Factor: 69
• Pulley End Bearing Type: Ball
• Shaft Extension Location: Pulley End
• Shaft Rotation: Fixed Opposite Standard
• Shaft Slinger Indicator: No Slinger
• Starting Method: Direct on line
• Vibration Sensor Indicator: No Vibration Sensor
• Thermal Device - Bearing: No
• Thermal Device - Winding: No
• Ambient Temperature: 40 °C
• Agency Approvals: CSA, UR
• Voltage Rating: 115/208/230 VAC
• Amperage Rating: 7.4/4.1/3.7 A
• Frequency Rating: 60 Hz
• Number of Speeds: 1
• Enclosure Type: TEFC
• Shaft Size: 5/8 in
• Rotation: Fixed Opposite Standard
• Bearing Type: Ball
• Torque Rating: 0.75 ft-lb
• Mounting Style: C-Face/Foot
• Temperature Rating: 40 deg C
• Material: Steel
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Frequency: 60 Hz
• Motor Voltage: 208 Volt
• Motor RPM's: 3600 RPM
• Motor Voltage Phases: 1 Phase
• Motor Horsepower: 0.5 HP
• Motor Amperage (Full Load): 7.4 Amp
• Motor NEMA Design: NEMA Design K
• Motor Insulation Class: Class B Insulation
• Motor Frame Model: 56J
• Manufacturer: Baldor-Reliance
• Motor Construction: Steel
