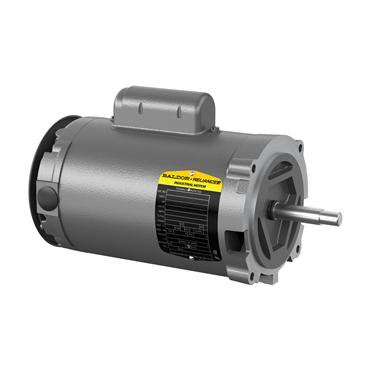

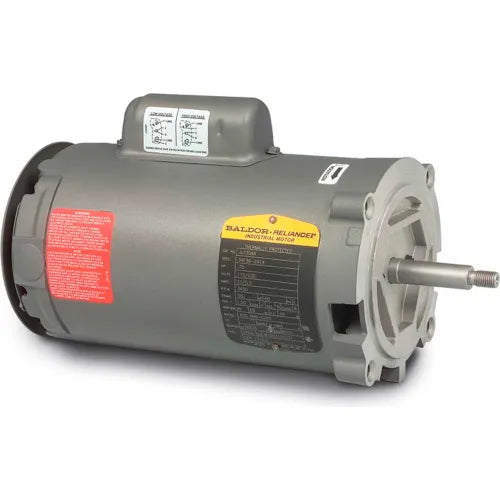

Baldor Motor JL1306A .75HP 3450RPM 1PH 60HZ 56J

Product Description

The Baldor Motor JL1306A is a .75 horsepower, 3450 RPM motor designed for various applications. It operates on single-phase power at 60 Hertz, featuring a 56J frame and an open enclosure with an F1 mounting configuration. This motor is well-suited for use in residential and industrial pumping systems, including pool pumps and other related applications.

• Automatic thermal overload protection
• Corrosion-resistant stainless steel shaft
• Diecast aluminum end plates with steel bearing seat

Product Highlights

This Baldor-Reliance motor provides efficiency and reliability, making it ideal for jet pump applications.

Product Information

Standard Information

• Catalog Number: JL1306A
• Frame: 56J

Technical Specifications

• Output Power: .750 HP
• Frequency: 60 Hz
• Voltage: 115 V / 230 V
• Efficiency: 69%
• Current: 11 A @ 115 V, 5.5 A @ 230 V
• Synchronous Speed: 3600 RPM
• Motor Type: 3424L
• Duty Rating: Continuous
• Weight: 33 pounds
