Baldor Motor JL1303A .5HP, 3450RPM, 1PH, 60HZ, 56J, 3420L, Open, F1

Product Description

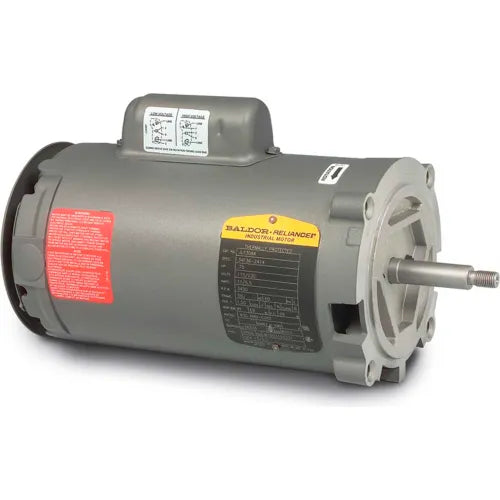

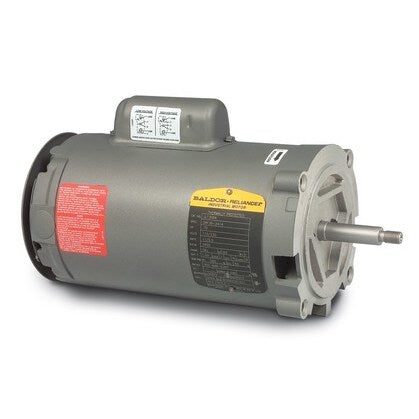

The BALDOR MOTOR JL1303A is a .5 HP, 3450 RPM, single-phase motor operating at 60 Hz. It features a 56J frame, 3420L motor type, and an open enclosure with F1 mounting. Designed for residential and industrial pump applications, it has a sturdy steel frame and cast aluminum end plates for mechanical reliability.

• 60 Hz design
• Ball bearing
• Steel frame

Product Highlights

This motor is suitable for jet pump applications with a robust design and reliable performance.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: JL1303A
• Country of Origin: United States

Technical Specifications

• Catalog Number: JL1303A
• Enclosure: ODP
• Frame: 56J
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Cap Start, Induction Run
• Output @ Frequency: .500 HP @ 60 HZ
• Phase: 1
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: No Mounting
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 3.700 A @ 230.0 V, 7.400 A @ 115.0 V
• Design Code: N
• Drip Cover: Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 66.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• Front Face Code: Terminal Panel
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: B
• Inverter Code: Not Inverter
• IP Rating: NONE
• KVA Code: L
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Terminal Panel Or Lead Hole
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 5 @ 18 AWG
• Motor Type: 3420L
• Mounting Arrangement: F1
• Number of Poles: 2
• Overall Length: 12.51 IN
• Power Factor: 67
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Ext Thread
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.60
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Fixed Opposite Standard
• Shaft Slinger Indicator: No Slinger
• Speed: 3450 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: Automatic Thermal Overload
• Winding Thermal 1 Location: SB
• Winding Thermal 2: None
• Bearing Opp Drive End: 6203
