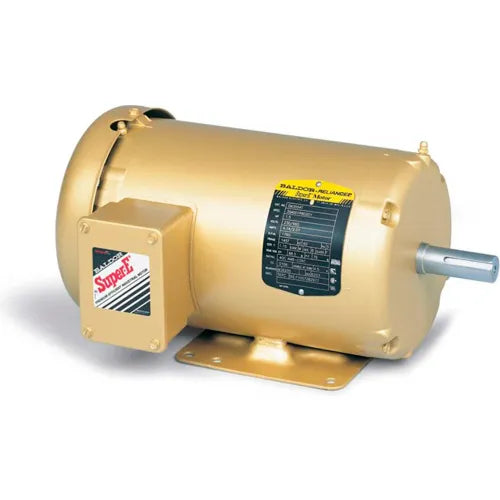

Baldor Motor EM3709T-G HVAC Motor 7.5HP 3520RPM 213T

Product Description

The BALDOR MOTOR EM3709T-G is a 7.5HP three-phase AEGIS HVAC electric motor designed for heating, ventilation, and air conditioning blower and fan motors. It is also suitable for pump motors and other general-purpose applications using an adjustable speed drive. The motor features dynamically balanced rotors for reduced vibration and quiet operation.

• Class H insulated with AEGIS shaft grounding ring installed internally
• 1 3/8" Keyed output shaft
• Regreasable ball bearings

Product Highlights

Designed for HVAC applications, this Baldor-Reliance motor offers premium efficiency and quiet operation. It is inverter-ready and suitable for mounting in any position.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: EM3709T-G

Technical Specifications

• Catalog Number: EM3709T-G
• Enclosure: TEFC
• Frame: 213T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 7.500 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 460.0 V @ 60 HZ / 230.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUSEEV NEMA_PREMIUM
• Ambient Temperature: 40 C
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 18.000 A @ 230.0 V / 19.000 A @ 208.0 V / 9.000 A @ 460.0 V
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 89.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 9.0 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: H
• Inverter Code: Inverter Ready
• IP Rating: NONE
• KVA Code: J
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 14 AWG
• Motor Type: 3728M
• Mounting Arrangement: F1
• Number of Poles: 2

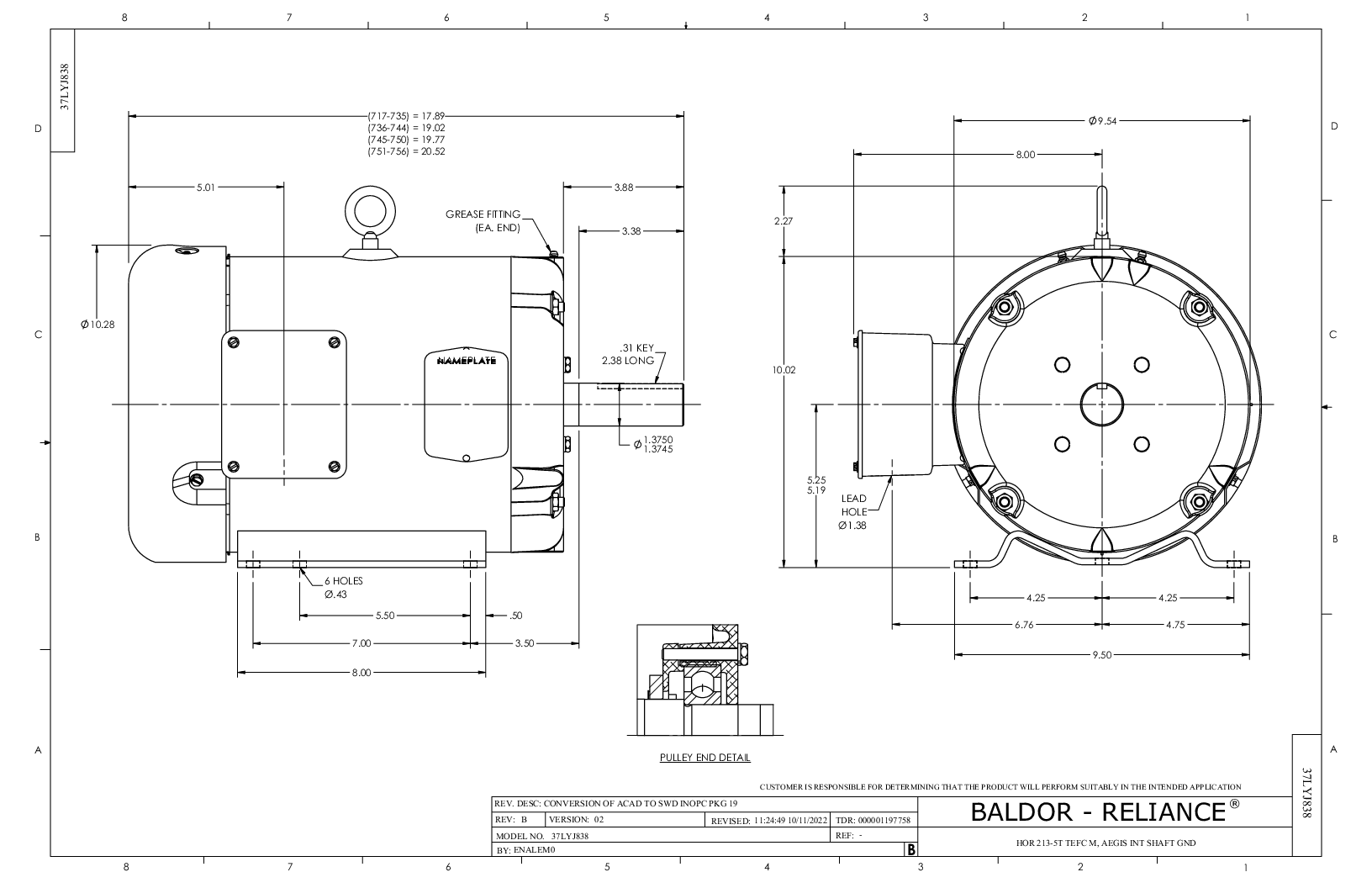

• Overall Length: 17.89 IN
• Power Factor: 84
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.375 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 3520 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: AEGIS HVAC
• Output HP: 7.5
• Output KW: 5.5
• Output RPM: 3520
• Frame Size NEMA: 213T
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP44
• Voltage: 230/460//190/380
• Length: 17.89 in
• Width: 16.5 in
• Height: 16 in
• Weight: 84 lbs
• Drive End Bearing Size: 6205
• Length Less Shaft: 21.5 in
• Number of Speeds: 1
• Motor RPM 60 Hertz: 3600 rpm
• Mounting Location: Rigid
• Rated RPM: 3600
• Full Load Efficiency: 91
• Full Load Amps: 8.9 FLA
• Duty: Continuous
• RPM Range: 3001-3600 rpm
• Certifications: CSA; CSA EEV; UR
• Horsepower: 7 1/2 HP
• Hertz: 60 Hz
• Rotation: CCW/CW
• Thermal Protection: None
• Enclosure Type: Totally Enclosed
• Volts: 208/230/460
• Amps: 9
