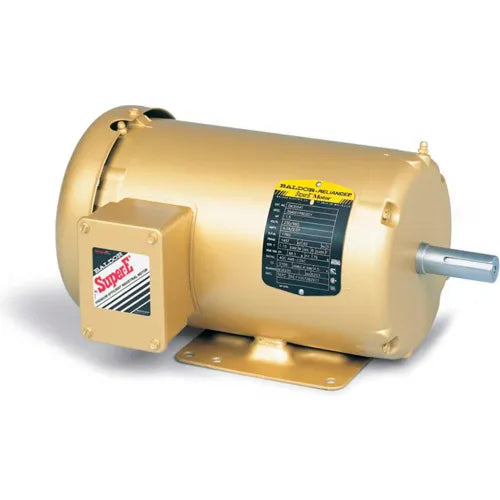

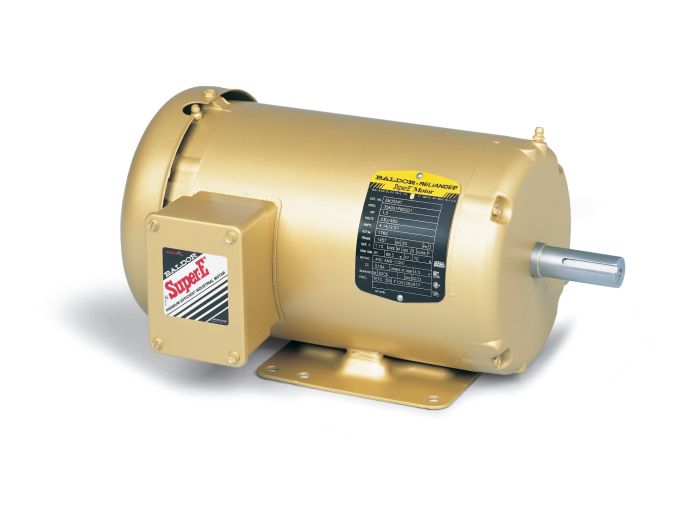

Baldor Motor EM3708T-G 5HP 1165RPM 3PH 60HZ 215T

Product Description

The Baldor Motor EM3708T-G is a five-horsepower three-phase electric motor designed specifically for HVAC applications. This motor is suitable for use in heating, ventilation, air conditioning systems, as well as in pumps and fans. It operates efficiently at a speed of 1165 revolutions per minute.

• Three-phase power for robust operation
• Internally installed AEGIS shaft grounding ring
• Constructed with dynamic balance for reduced operational noise

Product Highlights

This motor features a Class H insulation system, suitable for variable frequency drive applications, enhancing its performance and lifespan.

Product Information

Standard Information

• Brand: Baldor Motor
• MPN: EM3708T-G

Technical Specifications

• Catalog Number: EM3708T-G
• Enclosure: TEFC
• Frame: 215T
• Power Output: 5 HP @ 60 Hz
• Voltage: 460 V @ 60 Hz / 230 V @ 60 Hz
• Current: 15.6 A @ 208 V / 7.2 A @ 460 V / 14.4 A @ 230 V
• Efficiency: 89.5%
• Mounting Arrangement: F1
• Weight: 154 lbs
• Overall Length: 20.51 inches
• Width: 16.5 inches
• Height: 16 inches
• Duty Rating: Continuous
• Motor Type: 3752M
• Synchronous Speed: 1200 RPM
• Rotation: CCW/CW
