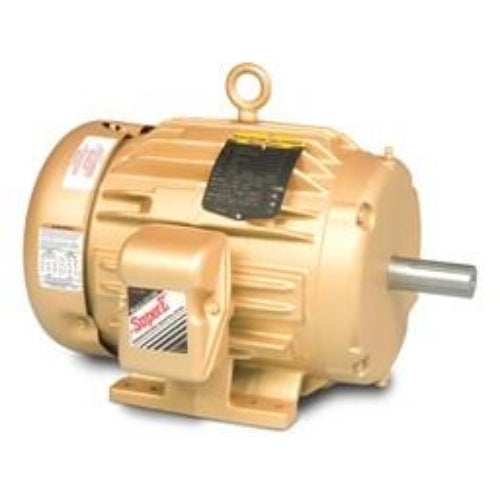

Baldor Motor EM3586T-G General Purpose Electric Motor

Product Description

The Baldor Motor EM3586T-G is a three-phase general-purpose electric motor suitable for various industrial tasks. This motor operates efficiently at sixty Hertz and features a totally enclosed fan cooled (TEFC) design for optimal performance and durability. It is designed for continuous duty applications and can be easily mounted on a rigid base.

• Three-phase operation for powerful performance.
• TEFC enclosure to protect against external elements.
• Rated for continuous usage in demanding environments.

Product Highlights

This motor is inverter ready and suitable for a range of tasks in industrial settings. Its rugged design includes standard lifting lugs for easy installation and portability.

Product Information

Standard Information

• Manufacturer: Baldor-Reliance
• Catalog Number: EM3586T-G

Technical Specifications

• Output @ Frequency: 2.000 HP @ 60 Hz
• Horsepower: 2 HP
• Speed: 3490 rpm
• Input Voltage: 230.0 V @ 60 Hz / 460.0 V @ 60 Hz
• Input Current: 5.300 A @ 208.0 V / 5.000 A @ 230.0 V / 2.500 A @ 460.0 V
• Motor Phase: 3 Phase
• Frame Size: 145T
• Duty Rating: CONT
• Service Factor: 1.15
