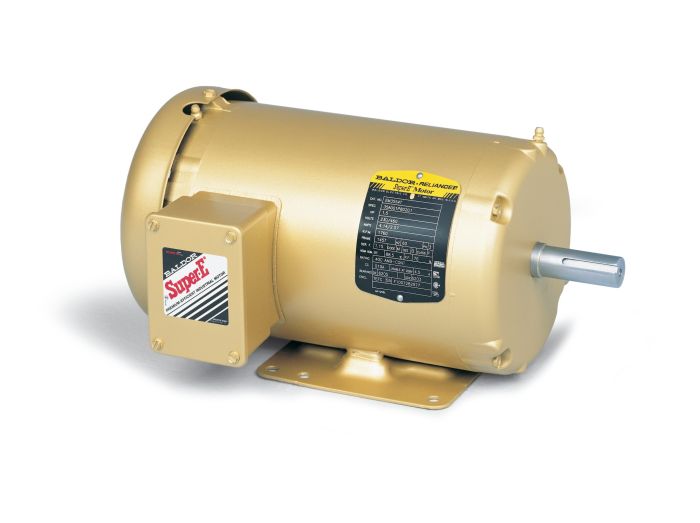

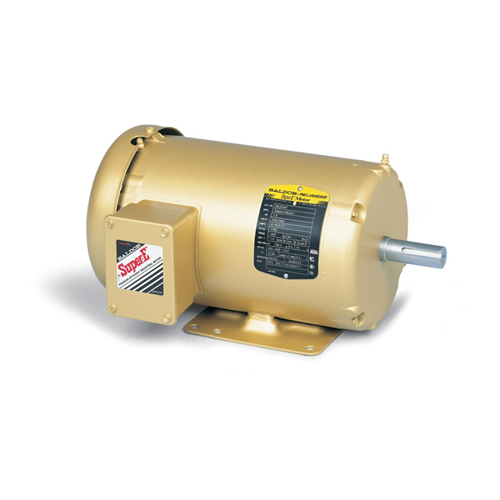

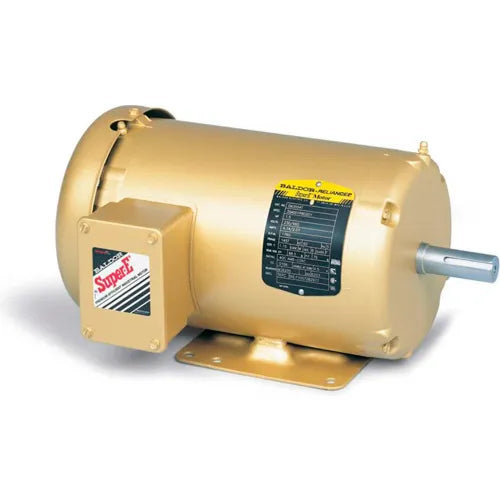

Baldor Motor EM3559T-G 3HP 3450RPM 3PH 60HZ 145T

Product Description

The Baldor Motor EM3559T-G is a three-phase motor with a power rating of three horsepower and a speed of three thousand four hundred fifty RPM. It operates at sixty hertz and features a forty-five frame size with a TEFC design. This motor is suitable for HVAC applications and general use.

• Dynamically balanced rotors minimize vibration.
• Includes a shaft grounding feature for better protection.
• Class H insulation enhances performance under variable frequency drives.

Product Highlights

This motor is ideal for applications such as air conditioning units, fans, and ventilators.

Product Information

Standard Information

• Brand: Baldor
• MPN: EM3559T-G

Technical Specifications

• Catalog Number: EM3559T-G
• Enclosure: TEFC
• Frame: 145T
• Frequency: 60 Hz
• Power Output: 3 HP @ 60Hz
• Voltage: 230 V @ 60 Hz, 460 V @ 60 Hz
• Current: 7.9 A @ 208 V, 7.2 A @ 230 V, 3.6 A @ 460 V
• Efficiency: 86.5%
• Motor Type: 1052M
• Overall Length: 14.17 inches
• Width: 13.75 inches
• Height: 12.625 inches
• Weight: 53 pounds
• Duty Rating: Continuous
• Certifications: CSA, UR
