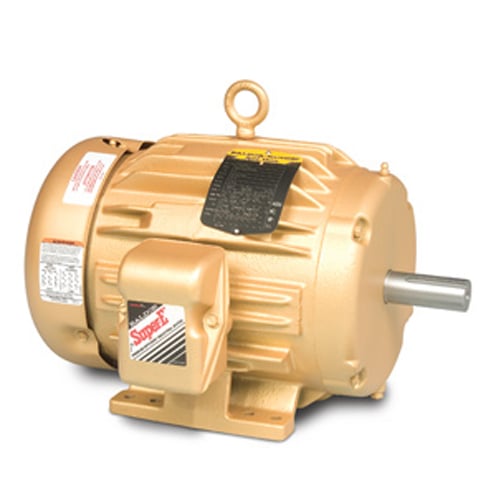

Baldor Motor EM3314T-G AC Motor 15 HP

Product Description

The Baldor Motor EM3314T-G is a three-phase AC motor suitable for various applications. It operates at 460 volts or 230 volts at sixty hertz. The motor provides a power output of fifteen horsepower at a synchronous speed of three thousand six hundred RPM.

• Operates at 460V or 230V at 60 Hz
• Delivers 15 horsepower at 3600 RPM
• Open drip-proof enclosure

Product Highlights

This motor features a steel frame, standard lifting lugs, and a rigid base. It is rated for NEMA standards and designed for reliability in general-purpose scenarios.

Product Information

Standard Information

• Brand: Baldor Motor
• MPN: EM3314T-G

Technical Specifications

• Product Type: Pump Motors
• Motor Type: 3734M
• Rated Power: 15 HP
• Speed: 3500 RPM
• Synchronous Speed @ Frequency: 3600 RPM @ 60 Hz
• Number of Poles: 2
• Input Voltage: 460.0 V @ 60 Hz / 230.0 V @ 60 Hz
• Phase: 3
• Enclosure: ODP
• Frame Size: 215T
• Duty Rating: CONT
• Efficiency @ 100% Load: 90.2 %
• Insulation Class: H
• Shaft Diameter: 1.375 inches
• Motor Standards: NEMA
• Lifting Lugs: Standard Lifting Lugs
• Shaft Rotation: Reversible
