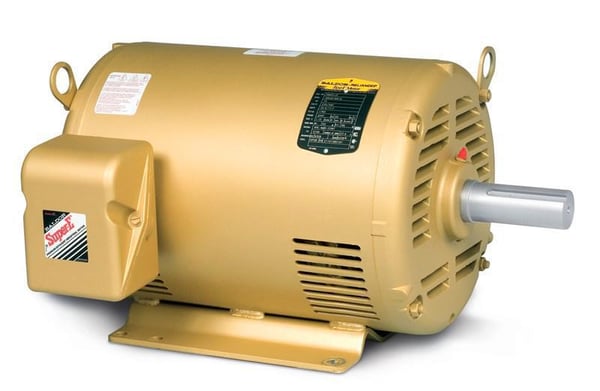

Baldor Motor EM3215T Motor 2 HP

Product Description

The Baldor Motor EM3215T is a robust 2HP electric motor designed for industrial applications. With a speed of 1165 RPM and a 3PH 184T configuration, this motor delivers efficient and reliable performance. Its durable construction ensures longevity in demanding environments. Engineered for demanding industrial use cases.

• 2 HP power output
• 1165 RPM speed
• 3PH 184T configuration
• Cast iron frame for durability

Product Highlights

This motor features premium-grade components, a compact design for easy integration, and an advanced cooling system for optimal performance.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: EM3215T
• Country of Origin: US

Technical Specifications

• Item Number: EM3215T
• Brand: Baldor Motor
• Manufacturer: Baldor Motor
• Catalog Number: EM3215T
• Enclosure: OPSB
• Frame: 184T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 2.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUSEEV
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 6.800 A @ 208.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 87.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 3.4 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: L
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 16 AWG
• Motor Type: 3636M
• Mounting Arrangement: F1
• Number of Poles: 6
• Overall Length: 16.50 IN
• Power Factor: 63
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.125 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1175 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Application: General Purpose
• Output HP: 2
• Output KW: 1.5
• Output RPM: 1175
• Frame Size NEMA: 184T
• Mount NEMA: With Base
• Enclosure NEMA: OPSB
• Enclosure IEC: IP22
• Voltage: 230/460//190/380
• Bearing Type: Ball
• Frequency Rating: 60 Hz
• Horsepower: 2 hp
• Material: Steel
• Number of Speeds: 1
• Torque Rating: 35.3 ft-lb
• Amperage Rating: 6.8/6.8/3.4 A
• Type: Type 3636M Continuous Duty
• Voltage Rating: 208/230/460 VAC
• Motor RPM 60 Hertz: 1170 rpm
• Mounting Location: Rigid
• Bearing Opp Drive End: 6205
• Drive End Flange: Standard
• Amps @ 208V: 7.1 A
• Enclosure Type: Open/Drip Proof
• Full Load Efficiency: 88.5
• Nameplate RPM: 1170 rpm
• Full Load Amps: 7.1-7/3.5 FLA
• Poles: 6
• RPM Range: 1101-1200 rpm
• DOE Code: 010A
• Dimension C: 16.5 in
• Break-Down Torque: 35.3LB-FT
• Conduit Box Material: Steel
• Locked-Rotor Torque: 25.1LB-FT
• Motor Weight: 79
• Starting Current: 23.9A
• Synchronous RPM: 1200
• Temp. Rise @ Rated Load: 24°C
• Temp. Rise @ S.F. Load: 28°C
• XP Class and Group: None
• XP Division: NotApplicable
• RPM: 1100 - 1200
• Hz: 60
• HP: 2
