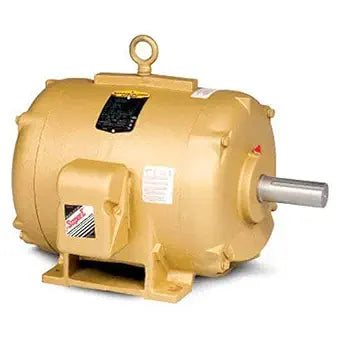

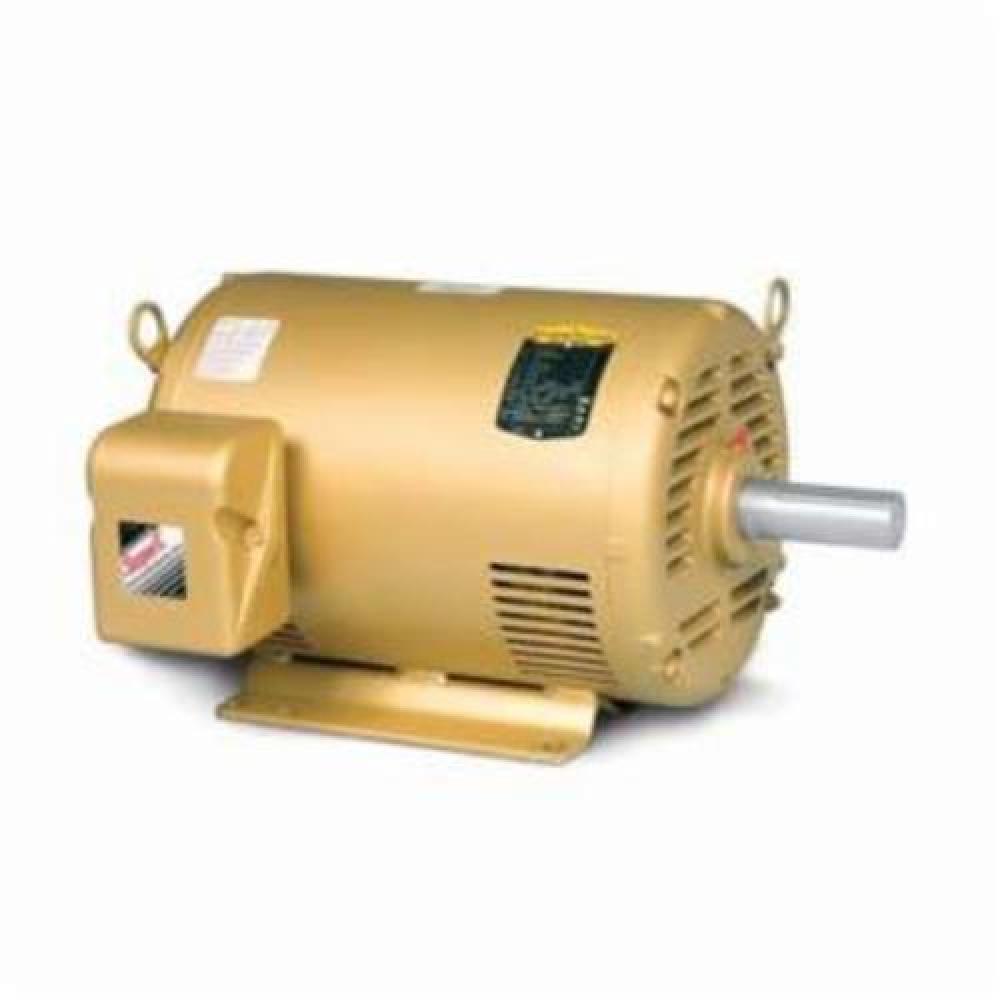

Baldor Motor EM2542T General Purpose Motor 50HP 3525RPM

Product Description

The BALDOR MOTOR EM2542T is a general purpose motor designed for applications such as HVAC blower and fan motors, pump motors, and other general purpose uses with adjustable speed drives. It features class H insulation with an AEGIS shaft grounding ring installed internally. Designed for continuous or frequent duty applications.

• Class H insulated with AEGIS shaft grounding ring installed internally
• 1 7/8" Keyed output shaft
• Regreasable ball bearings

Product Highlights

This motor is suitable for mounting in any position and meets or exceeds NEMA Premium efficiencies.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: EM2542T

Technical Specifications

• Catalog Number: EM2542T
• Enclosure: ODP
• Frame: 324TS
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 50.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Agency Approvals: NEMA_PREMIUM CURUSEEV
• Ambient Temperature: 40 C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 112.000 A @ 230.0 V 124.000 A @ 208.0 V 56.000 A @ 460.0 V
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 93.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 56.0 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• IP Rating: NONE
• KVA Code: G
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 8 AWG
• Motor Type: 4058M
• Mounting Arrangement: F1
• Number of Poles: 2
• Overall Length: 25.69 IN
• Power Factor: 90
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 3525 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: AEGIS HVAC
• Output HP: 50
• Output KW: 37.3
• Frame Size NEMA: 324TS
• Mount NEMA: With Base
• Enclosure NEMA: OPSB
• Enclosure IEC: IP22
• Voltage: 230/460//190/380
