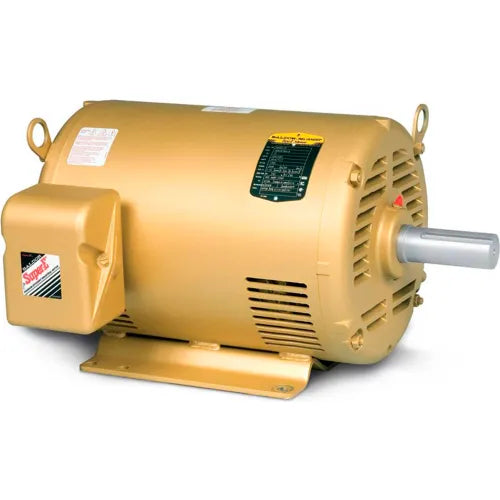

Baldor Motor EM2528T General Purpose Three Phase Motor

Product Description

The Baldor Motor EM2528T is a three-phase motor with a power rating of twenty horsepower and a speed of approximately 1180 RPM. This model is suitable for general-purpose applications and operates effectively at a frequency of sixty hertz. It is constructed with a 286T frame and features an open drip proof enclosure, making it a robust choice for various tasks.

• Operates at twenty horsepower with a speed of 1180 RPM.
• Built with a 286T frame and open drip proof design.
• Configured for F1 mounting and direct online starting.

Product Highlights

The Baldor EM2528T is designed for reliability and efficiency. It meets NEMA standards and is suitable for applications requiring inverter-ready capabilities.

Product Information

Standard Information

• Brand: Baldor-Reliance
• Motor Type: 4056M

Technical Specifications

• Horsepower: 20 HP
• Speed: 1180 RPM
• Frequency: 60 Hz
• Voltage: 230/460 V
• Full Load Amps: 52/26 FLA
• Enclosure Type: Open/Drip Proof
• Frame Size: 286T
• Mounting Arrangement: F1
• Efficiency @ 100% Load: 92.4%
