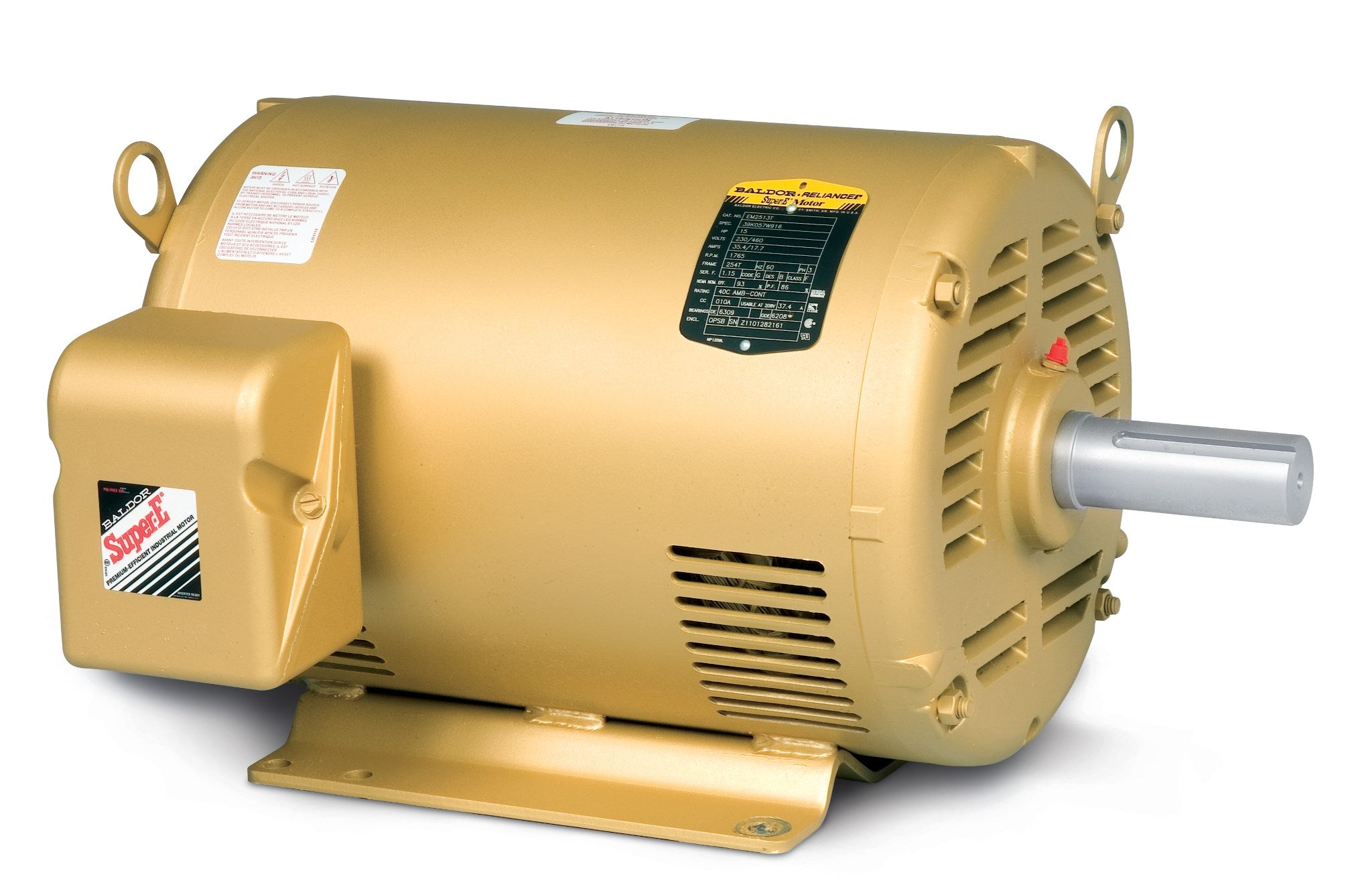

Baldor Motor EM2513T-8G General Purpose Motor 15 HP

Product Description

The Baldor Motor EM2513T-8G is a three-phase, four-pole AC motor suitable for general-purpose applications. It runs on 200V at sixty Hertz, providing 15 horsepower at one thousand seven hundred sixty-five RPM. Constructed with a 254T frame and steel material, it features an Open Slotted Band enclosure, designed for continuous duty, and is equipped with flying leads for motor lead termination.

• Three-phase operation
• NEMA standard compliant
• Rigid base mounting

Product Highlights

This motor is ideal for various commercial and industrial uses, ensuring reliable performance and durability.

Product Information

Standard Information

• Brand: Baldor Motor
• MPN: EM2513T-8G

Technical Specifications

• Motor Type: AC Motor
• Rated Horsepower: 15 hp
• Speed: 1765 rpm
• Number of Poles: 4
• Input Voltage: 200 V
• Frequency: 60 Hz
• Frame Size: 254T
• Enclosure Type: OPSB
• Mounting Type: Rigid Base
• Duty Rating: Continuous
• Service Factor: 1.15
• Insulation Class: H
• Efficiency @ 100% Load: 93.0%
• Full Load Current: 41.00 A
• Power Factor: 85
• Shaft Diameter: 1.625 inches
• Overall Length: 23.19 inches
• Weight: 255 lbs
• Agency Approvals: CUR, SEEV, NEMA Premium
