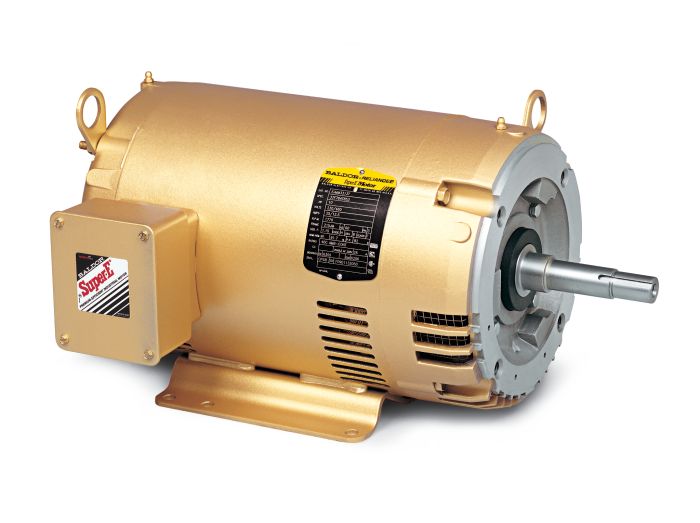

Baldor Motor EJMM3154T-G General Purpose Motor 1.5 HP

Product Description

The Baldor Motor EJMM3154T-G is a three-phase general-purpose motor designed for reliable performance. It operates at sixty hertz and is built for direct on-line starting. This motor features a sturdy base, C-face mounting, and a steel frame for durability. It has ball bearings and provides flying leads for easy termination. A rodent screen is included for added protection. This motor is rated for continuous duty and allows for reversible shaft rotation.

• Operates on three-phase power at sixty hertz.
• Rated for continuous duty with a rigid base.
• Includes a rodent screen and flying leads for easy installation.

Product Highlights

This motor is suitable for various applications requiring reliable operation in industrial settings.

Product Information

Standard Information

• Manufacturer Part Number: EJMM3154T-G
• Brand: Baldor

Technical Specifications

• Horsepower: 1.5 HP
• Speed: 1755 RPM
• Synchronous Speed: 1800 RPM
• Frequency: 60 Hz
• Voltage: 230/460 Volts
• Phase: 3
• Frame Size: 145JM
• Enclosure: OPSB
• Motor Type: 3522M
• Motor Standards: NEMA
• Number of Poles: 4
• Frame Material: Steel
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Overall Length: 13.75 inches
• Service Factor: 1.15
• Efficiency @ 100% Load: 86.5%
• Duty Rating: CONT
• Inverter Code: Inverter Ready
• Shaft Diameter: 0.875 inches
• Insulation Class: H
• Power Factor: 72
• Shaft Rotation: Reversible
