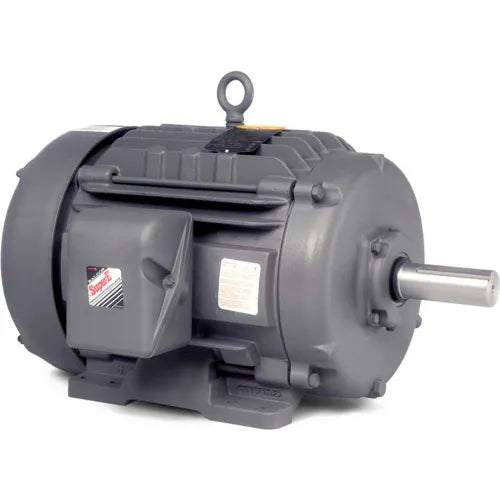

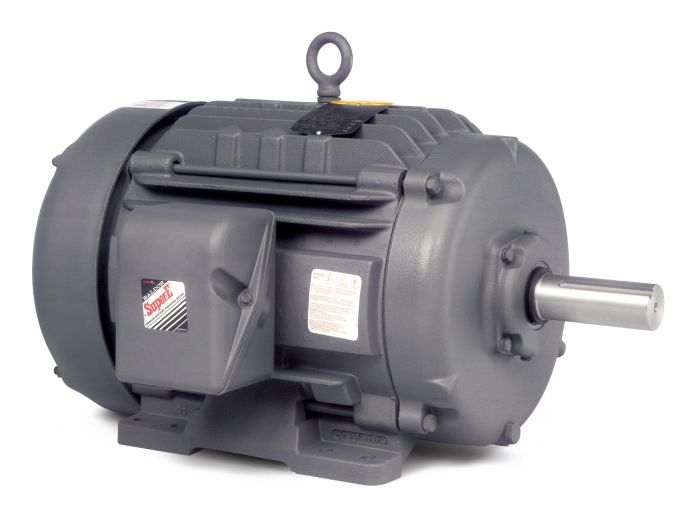

BALDOR MOTOR EHM4103T Electric Motor, 25 HP, 1780 RPM, 3-Phase, TEFC, 284T Frame

Product Description

The BALDOR MOTOR EHM4103T is a reliable three-phase electric motor. It delivers a horsepower of twenty-five and operates at a speed of one thousand seven hundred eighty RPM. With a design frequency of sixty hertz, it has a robust 284T frame. This motor features a TEFC enclosure, designed to operate in various environments.

• Three-phase operation at 460V/230V.
• Designed with a cast iron frame for durability.
• Suitable for continuous duty applications like HVAC systems.

Product Highlights

This electric motor is ideal for industries requiring consistent performance. It is suited for heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Baldor-Reliance
• Manufacturer: Baldor-ABB Motors

Technical Specifications

• MPN: EHM4103T
• Motor Type: 1056M
• Horsepower: 25 hp
• Speed: 1780 rpm
• Phase: 3
• Input Voltage: 460.0 V / 230.0 V
• Full Load Amps: 64 A
• Frame Size: 284T
• Enclosure Type: TEFC
• Duty Rating: CONT
• Rotation: CCW/CW
• Shaft Diameter: 1.875 inches
• IP Rating: 44
• Motor Standards: NEMA
• Overall Length: 27.76 inches
