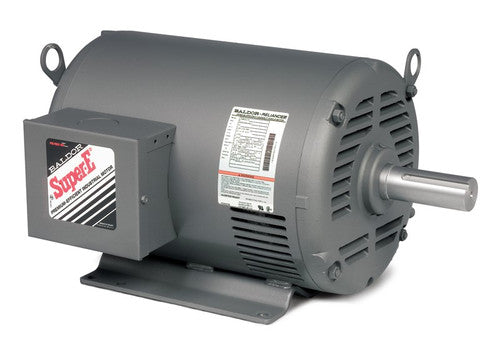

Baldor Motor EHM3157T Baldor Motor 2HP 1750RPM 145T

Product Description

The Baldor MOTOR EHM3157T electric motor delivers robust performance in a compact design. Designed with a 2HP output, this motor operates at 1750RPM and utilizes three-phase power. Voltage compatibility extends to both 230 volts and 460 volts. Built to withstand demanding industrial environments, it features a sturdy rolled steel frame and aluminum flange.

• Operates at 1750 RPM
• Three-phase power
• Suitable for HVAC applications

Product Highlights

The Baldor Motor EHM3157T is a reliable choice for powering industrial equipment across various industries, including manufacturing, conveying, material handling, processing, and HVAC systems.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: EHM3157T

Technical Specifications

• MPN: EHM3157T
• Brand: BALDOR MOTOR
• Item Number: EHM3157T
• Enclosure: ODP
• Frame: 145T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 2.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ 460.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUS
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 2.800 A @ 460.0 V 5.600 A @ 230.0 V 5.800 A @ 208.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 86.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 2.8 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: K
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: General Purpose HVAC Motor
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 12.13 IN
• Power Factor: 77
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 0.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1760 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Application: HVAC
