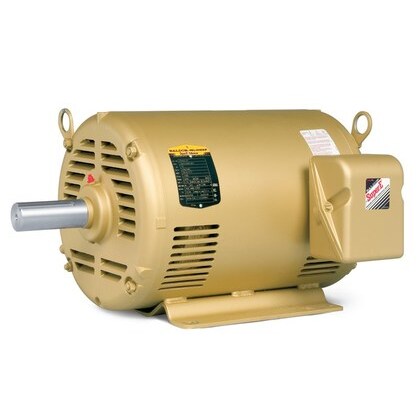

Baldor Motor EFM2513T-8 15HP, 1765RPM, 3PH, 60HZ, 254T, 3948M, OPSB, F2

Product Description

The BALDOR MOTOR EFM2513T-8 is a 15 HP, three phase electric motor designed for applications requiring continuous or frequent duty. It operates at 1765 RPM, 60 Hz, and 200 VAC. The motor features an open drip proof enclosure and a rigid base for mounting. Super-E Motors are designed to conserve energy over extended time periods.

• Three Phase
• Open Drip Proof Enclosure
• 254T Frame
• Rigid Base
• Inverter Ready

Product Highlights

This motor is suitable for inverter use and features a dynamically balanced rotor to increase bearing life.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: EFM2513T-8
• Country of Origin: United States

Technical Specifications

• Catalog Number: EFM2513T-8
• Enclosure: ODP
• Frame: 254T
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: 15.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 200.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: CURUSEEV, NEMA_PREMIUM
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 40.000 A @ 208.0 V, 41.000 A @ 200.0 V
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 93.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 41.0 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• IP Rating: IP22
• KVA Code: H
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 3 @ 8 AWG
• Motor Type: 3948M
• Mounting Arrangement: F2
• Number of Poles: 4
• Overall Length: 23.19 IN
• Power Factor: 85
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1765 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• Brand: Baldor
• Application: General Purpose
• Output HP: 15
• Output KW: 11.2
• Output RPM: 1765
• Frame Size NEMA: 254T
• Mount NEMA: With Base
• Enclosure NEMA: OPSB
• Voltage: 200
• Manufacturer: Baldor-ABB Motors
• Product Series: EFM
• Family Series: Baldor-ABB Motors Motors, EFM Series
• Description: 15HP, 1765RPM, 3PH, 60HZ, 254T, 3938M, OPSB, F2
• Type: General Purpose, High Efficiency
• Horsepower: 15 hp
• RPM: 1,800 RPM
• AC Voltage: 200 VAC
• Nominal Voltage: 208 VAC
• Mounting: Foot Mount, Rigid - F2
• Current Rating: 40.7 A
• Bearing Type: Ball
• Length: 21.69 "
• Amps: 60
