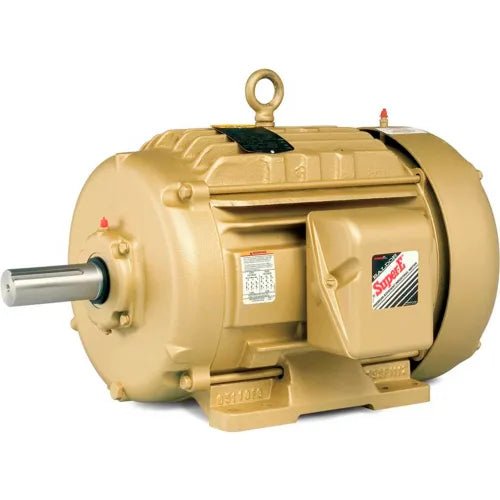

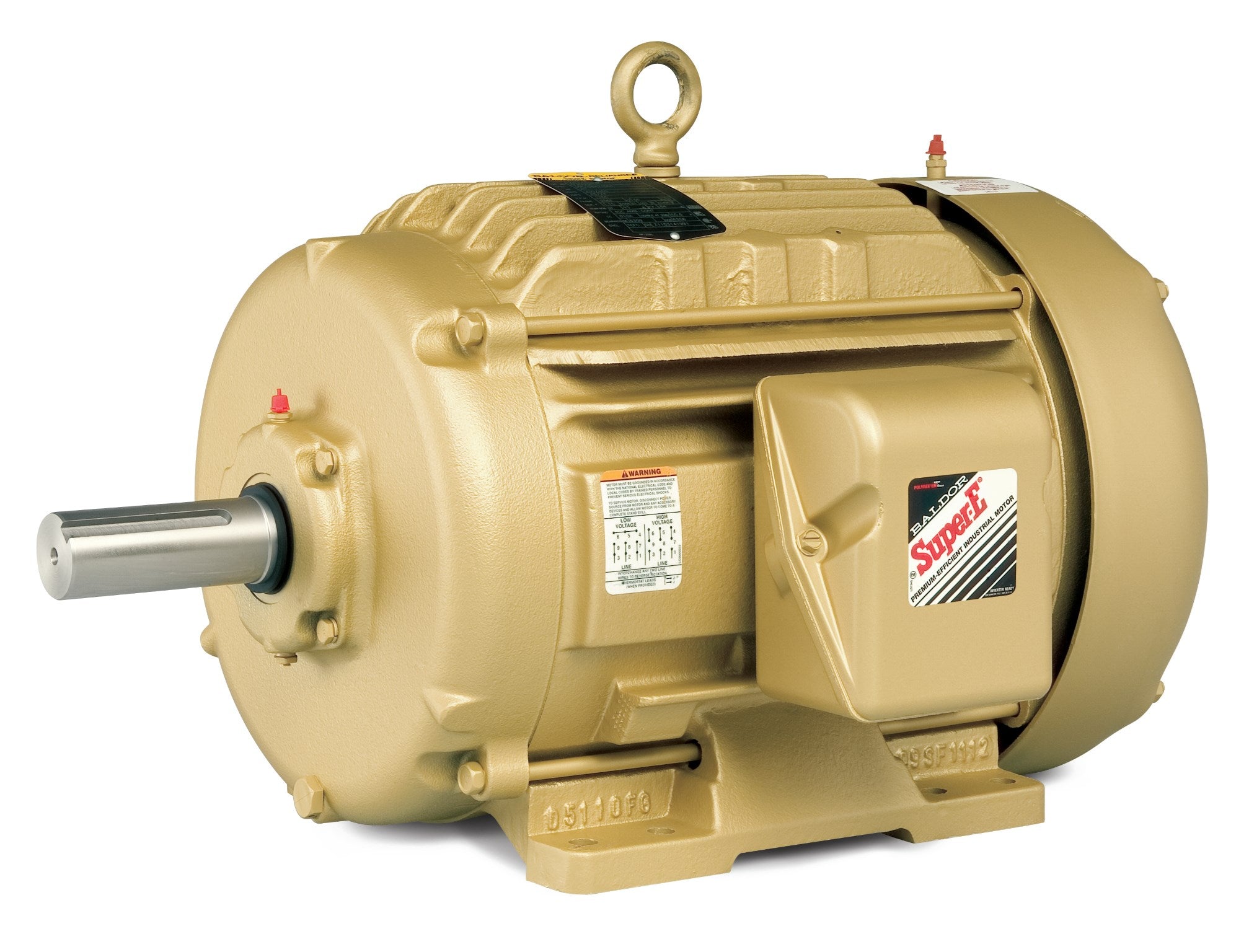

Baldor Motor EFM2334T, 20 HP, 1770 RPM, Three Phase AC Motor

Product Description

The Baldor Motor EFM2334T is a three-phase AC motor that delivers a power output of 20 HP and operates at a speed of 1770 RPM. This motor is suitable for general-purpose applications, specifically designed for 60 Hz operation with a robust 256T frame. Its Totally Enclosed Fan Cooled (TEFC) design ensures durability in various environments. The motor is inverter ready, making it compatible with a range of setups.

• Power: 20 HP
• Speed: 1770 RPM
• Frame: 256T TEFC

Product Highlights

This Baldor AC motor is ideal for industrial environments where performance and reliability are crucial. It is built with a cast iron frame for added strength and longevity. The motor's capability to run at both 230V and 460V enhances its versatility, meeting different operational needs.

Product Information

Standard Information

• Brand: Baldor-Reliance
• Manufacturer Part Number: EFM2334T

Technical Specifications

• Horsepower: 20 HP
• Speed: 1770 RPM
• Voltage: 230/460 V
• Frequency: 60.00 Hz
• Phase: 3
• Frame Size: 256T
• Enclosure Type: TEFC
• Efficiency @ 100% Load: 93.0%
• Full Load Amps: 48/24 FLA
• Shaft Diameter: 1.625 inches
• Overall Length: 23.36 inches
• Weight: 276 lbs
