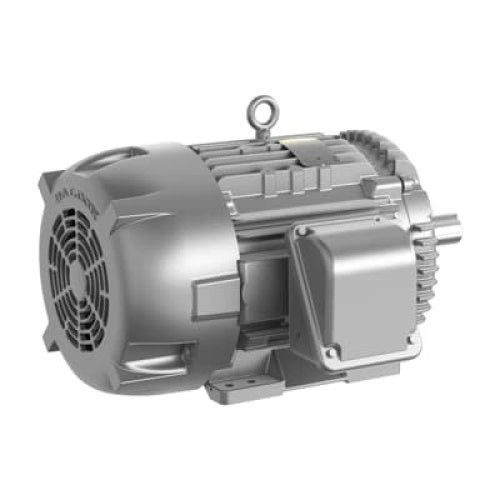

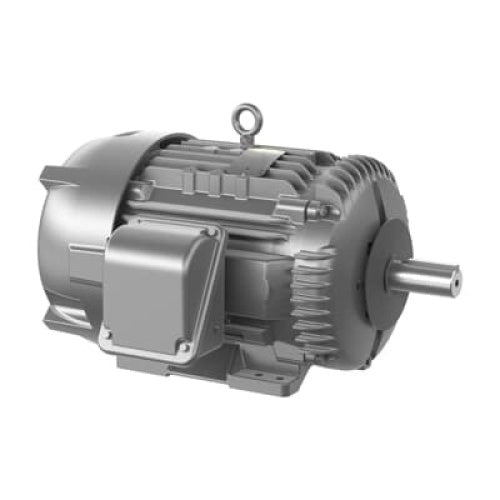

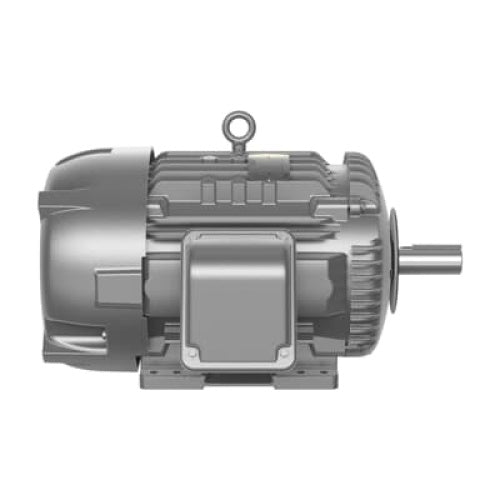

Baldor Motor ECTM4100T Motor, 15 AIR OVERHP, 1180RPM, 3PH, 60HZ, 284T, 1042

Product Description

The BALDOR MOTOR ECTM4100T is a Baldor-Reliance motor with 15 AIR OVERHP, operating at 1180RPM, 3PH, 60HZ, and featuring a 284T frame. It has a 1.15 service factor, corrosion-resistant epoxy finish, and double-sealed bearings. Designed with Class F insulation and moisture-resistant copper windings, it is double-dipped and baked, and includes stainless steel nameplates. Typical applications include use in the airstream on cooling towers.

• 1.15 service factor
• Corrosion resistant expoxy finish
• Double sealed bearings

Product Highlights

This motor is suitable for use in the airstream on cooling towers and is designed to withstand harsh conditions.

Product Information

Standard Information

• Brand: BALDOR MOTOR
• Manufacturer Part Number: ECTM4100T

Technical Specifications

• Length: 25.63 in
• Width: 18 in
• Height: 18 in
• Shaft Diameter: 1.875 in
• Frame Size: 284T
• Number of Speeds: 1
• Mounting Location: Rigid
• Phase: 3
• Manufacturers Part Number: ECTM4100T
• Enclosure: TEAO
• Service Factor: 1.15
• Brand: Baldor-Reliance
• Bearing Type: Sealed
• Insulation Class: F
• Horsepower: 15 HP
• Hertz: 60 Hz
• Design Code: B
• Rotation: CCW/CW °
• Thermal Protection: None
• Enclosure Type: Totally Enclosed
• Voltage: 230/460 V
• Full Load Efficiency: 91.7
• Full Load Amps: 40/20 FLA
• Duty: CONT
• Poles: 6
• Rated RPM: 1180
• Ambient Temperature: 40 °C
• RPM Range: 1101-1200 rpm
• Certifications: CSA; CSA EEV; UR
• Application: Cooling Tower
• Output HP: 15
• Output KW: 11
• Output RPM: 1175
• Mount NEMA: With Base
• Enclosure NEMA: TEAO
• Enclosure IEC: IP55
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Voltage Phases: 3 Phase
• Motor Frame Model: 284T
• Motor Frequency: 60 Hz
• Motor Duty Cycle: Continuous Duty
• Motor NEMA Design: NEMA Design A
• Motor Type: Chemical Processing
• Speed: 1175 RPM
• Current: 42.0 A/208 V 42.0 A/230 V 21.0 A/460 V
• Feedback: None
